Pipeline insulation is essential for protecting pipelines and maintaining efficiency. Without it, energy loss and corrosion can quickly degrade infrastructure.
In this post, we’ll discuss how polyurethane foam spray machines offer an efficient, cost-effective solution for pipeline insulation. You’ll learn how these machines improve energy efficiency, prevent damage, and extend the life of pipelines.
Polyurethane foam is a versatile material created by mixing two components: isocyanate and polyol. This combination forms a flexible or rigid foam with varying densities. There are two main types of polyurethane foam: open-cell and closed-cell.
Open-cell foam has more air pockets, making it more flexible but less effective for insulation.
Closed-cell foam is denser and provides superior insulation by trapping air in sealed cells, making it the preferred choice for pipeline insulation.
Thermal Resistance
Polyurethane foam offers excellent thermal resistance, ensuring stable temperatures within pipelines. This is crucial for transporting temperature-sensitive materials like chemicals or food products.
Durability
Polyurethane foam is highly durable, protecting pipelines from moisture, corrosion, and physical damage. Its resistance to environmental factors ensures a longer lifespan for infrastructure.
Lightweight and Easy to Apply
Polyurethane foam is lightweight and easy to apply, making installation quicker and more cost-effective. Its application reduces labor and material costs compared to other insulation materials.
Energy Efficiency
Polyurethane foam helps improve energy efficiency by reducing heat loss. This insulation material contributes to lower energy consumption, ultimately saving money and improving pipeline operations.

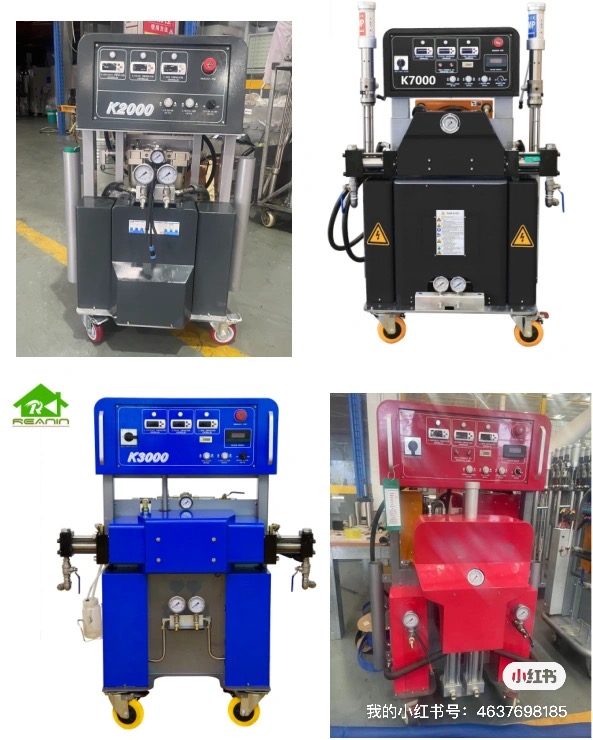

A polyurethane foam spray machine is a specialized tool designed for applying polyurethane foam insulation to pipelines. These machines are equipped with several key components: mixing systems, spraying mechanisms, and heating systems.
Mixing System: This is responsible for combining the two essential chemicals, isocyanate and polyol, in the right proportions to form the foam.
Spraying System: The machine has nozzles that spray the foam onto the pipeline's surface. It ensures an even application of foam to cover the entire area.
Heating System: The heating mechanism ensures the chemicals are at the right temperature before they are sprayed. This is critical for the chemical reaction that forms the foam.
One of the key features of these machines is the use of proportioning pumps and heated hoses. The proportioning pumps accurately mix the isocyanate and polyol in a 1:1 ratio, which is crucial for the foam's quality and performance. The heated hoses maintain the optimal temperature of the chemicals as they travel through the system, ensuring consistent foam application.
The process of applying polyurethane foam to pipelines involves several critical steps:
Preparing the Chemicals
Before the foam can be sprayed, the two chemical components, isocyanate and polyol, are prepared. These chemicals are typically stored in large drums and need to be pumped into the machine’s system. Both chemicals must be at a specific temperature to ensure proper mixing and a smooth foam application.
Mixing the Chemicals
Once the chemicals are fed into the system, the proportioning pumps ensure they are mixed in the correct ratio. The machine mixes the two chemicals in real-time, immediately before spraying them onto the surface. This precise mixing ensures the foam's desired properties, such as density and insulation value.
Spraying the Foam
After mixing, the foam is sprayed directly onto the pipeline surface. The spray gun is a crucial component here, as it ensures the foam is applied evenly and at the correct thickness. The gun's nozzle controls the foam's flow and pattern, creating a uniform layer on the pipeline.
The application process needs to be quick to allow the foam to expand and cure properly. This is where the importance of heating and pressurizing comes in. Heating the chemicals ensures they react properly to form foam, while pressurizing the system helps the foam cover the surface more effectively.
There are two primary types of polyurethane spray machines: high-pressure and low-pressure systems. The choice of system depends largely on the scale and complexity of the project.
| System Type | High-Pressure, Multi-Component Systems | Low-Pressure, One-Component Systems |
|---|---|---|
| Usage | Large-scale insulation projects such as pipeline insulation for oil and gas transport or large construction projects. | Smaller projects, such as residential or light commercial pipeline insulation. |
| Advantages | - Efficient for large-scale projects - Can cover larger areas quickly - Suitable for thick foam applications | - Easier to use - Cost-effective for smaller jobs - Lightweight and portable |
| Drawbacks | - More expensive - Requires specialized equipment and training | - Limited to smaller or less complex applications - May not provide uniform coverage |
| Best for | Large, demanding projects | Smaller, straightforward insulation tasks |
Each system has its unique strengths, and choosing the right one depends on the specifics of the job. High-pressure systems are better suited for large, demanding projects, while low-pressure systems are perfect for smaller, more straightforward insulation tasks.
Trench breakers are used to prevent soil erosion and stabilize pipelines, especially in challenging terrains like steep slopes or areas with heavy water flow. Polyurethane foam provides a solid, impermeable barrier that stops soil movement and keeps the pipeline secure. The foam ensures long-term stability by filling gaps and supporting the pipeline in difficult conditions.
Polyurethane foam acts as a protective layer, shielding pipelines from physical damage caused by impacts, abrasion, and external stress. When pipelines are exposed to harsh environments, such as construction zones or areas with heavy machinery, foam insulation helps absorb shock and protect the structure, ensuring its integrity over time.
Polyurethane foam plays a vital role in reinforcing the pipeline structure. It fills voids and spaces around the pipeline, ensuring that it remains properly supported and aligned. By offering additional support, the foam helps prevent the pipeline from sagging or shifting under external pressure, contributing to its overall stability and strength.
One of the primary functions of polyurethane foam is its ability to regulate temperatures within pipelines. This is especially important for pipelines transporting hot or cold materials. The foam’s superior thermal resistance helps maintain the desired temperature inside the pipeline, preventing heat loss or gain and ensuring the efficient transport of materials.
Polyurethane foam is also used to fill gaps around pipelines, providing additional structural support. These "void fills" help prevent the pipeline from settling or shifting, ensuring a stable installation. In addition, pipeline pads made from foam distribute the weight and stress across the pipeline system, preventing localized damage and enhancing overall durability.
Pipeline joints are particularly vulnerable to environmental damage and thermal bridging, which can reduce insulation performance. Polyurethane foam ensures consistent insulation across these joints, preventing heat loss and protecting against external elements like water or dirt. This continuous coverage ensures that the entire pipeline maintains the desired thermal stability.
Polyurethane foam ensures the temperature stability of pipelines by minimizing heat transfer. Its excellent thermal resistance helps reduce energy loss, making it ideal for transporting hot or cold materials. The R-value of polyurethane foam, which measures its thermal resistance, is significantly higher than many other insulation materials. This means polyurethane foam is more effective at maintaining the desired temperature within the pipeline, which leads to better energy efficiency.
Polyurethane Foam: R-value of 5-7 per inch
Fiberglass Insulation: R-value of 2-4 per inch
Mineral Wool: R-value of 3-4 per inch
Moisture ingress is a common issue that leads to pipeline corrosion. Polyurethane foam prevents water from penetrating the pipeline surface, significantly reducing the risk of rust and deterioration. This moisture barrier helps maintain the integrity of the pipeline, even in harsh or humid environments, which is critical for long-term pipeline performance.
Polyurethane foam adds durability to pipelines by protecting them from external wear and tear. Whether it's physical damage from impacts, abrasion, or exposure to environmental elements, the foam acts as a resilient shield. This protective layer enhances the lifespan of pipelines by reducing the frequency of repairs and maintenance required due to environmental stressors or mechanical damage.
The installation of polyurethane foam insulation offers long-term cost savings. By preventing energy loss, reducing the need for repairs, and increasing the lifespan of pipelines, polyurethane foam helps cut down operational costs. With fewer maintenance requirements and improved efficiency, this insulation pays off in both the short and long term. Additionally, the energy savings resulting from better thermal insulation can be significant over the life of the pipeline.
When choosing a polyurethane foam spray machine, several factors must be considered to ensure it meets the needs of your specific project. Start by evaluating the scale of the project and any site-specific requirements, such as temperature ranges, location, and pipeline types. For larger projects or remote locations, portability and mobility may be critical.
Project Scale: Larger projects require high-capacity machines, while smaller projects may be suited to more compact systems.
Site-Specific Requirements: Temperature and location can influence machine choice; some systems are designed to perform better in extreme conditions.
Pipeline Type: The complexity of the pipeline and insulation required will impact the choice of equipment.
Next, consider the size, capacity, and mobility of the machine. There are stationary systems for large-scale, permanent installations and portable systems for more flexible, on-the-go applications.
Polyurethane foam spray machines come with various features that enhance their performance and user-friendliness. When selecting a machine, focus on the following essential features:
Heating Capacity: The machine should have the ability to heat the isocyanate and polyol to the required temperatures for proper chemical reaction.
Output Pressure: Choose a machine that offers adjustable output pressure for uniform foam application, especially for larger or more intricate projects.
Ease of Use: Look for machines with user-friendly controls and settings that allow for quick setup and operation.
Safety Mechanisms: Ensure the machine includes safety features like emergency stop systems, multiple leak protection, and automatic shut-offs to prevent accidents.
To get the most out of your polyurethane foam spray machine, regular maintenance is key. Perform checks and clean the machine after each use to ensure smooth operation and avoid clogs or leaks. Store raw materials properly to prevent degradation and ensure the foam’s performance is not compromised.
Calibration: Ensure the system is calibrated properly for consistent foam application. This includes adjusting pressure and mixing ratios to prevent under- or over-application.
Regular Cleaning: Clean hoses, spray guns, and other components to prevent material buildup, which can affect the foam’s consistency and quality.
Proper Storage: Store the machine and materials in a dry, cool place to prevent any damage from exposure to extreme temperatures or humidity.
Polyurethane foam spray machines offer durability, energy efficiency, cost-effectiveness, and ease of application, making them the best solution for pipeline insulation. These machines enhance thermal resistance, protect against moisture, and extend the lifespan of pipelines.
As polyurethane foam technology advances, it continues to play a growing role in improving pipeline insulation, offering even more efficient and sustainable solutions for the future.
A: Polyurethane foam spray machines offer durability, energy efficiency, cost-effectiveness, and ease of application. They provide excellent thermal resistance, protect against moisture and corrosion, and extend the lifespan of pipelines.
A: Polyurethane foam acts as a protective barrier against moisture, physical damage, and environmental stress, ensuring the structural integrity of pipelines over time.
A: Heating systems in spray machines ensure that isocyanate and polyol chemicals are at the right temperature for proper foam formation, ensuring optimal insulation quality.
