New Pump
Reanin
8413501090
| polyurethane foam drum pumps | Barrel pumps/transfer pumps for polyurethane foam |
 |  |
Introduction:

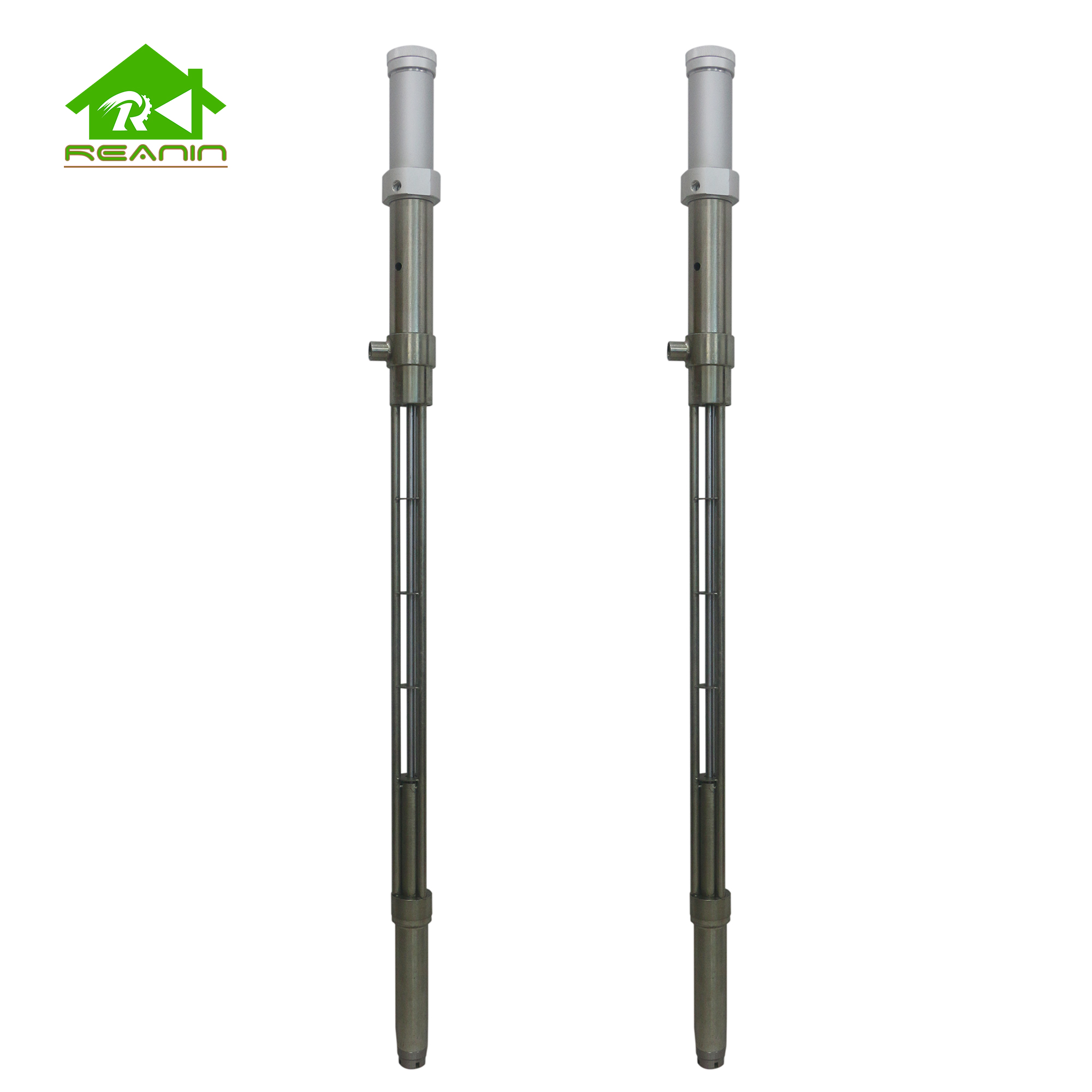

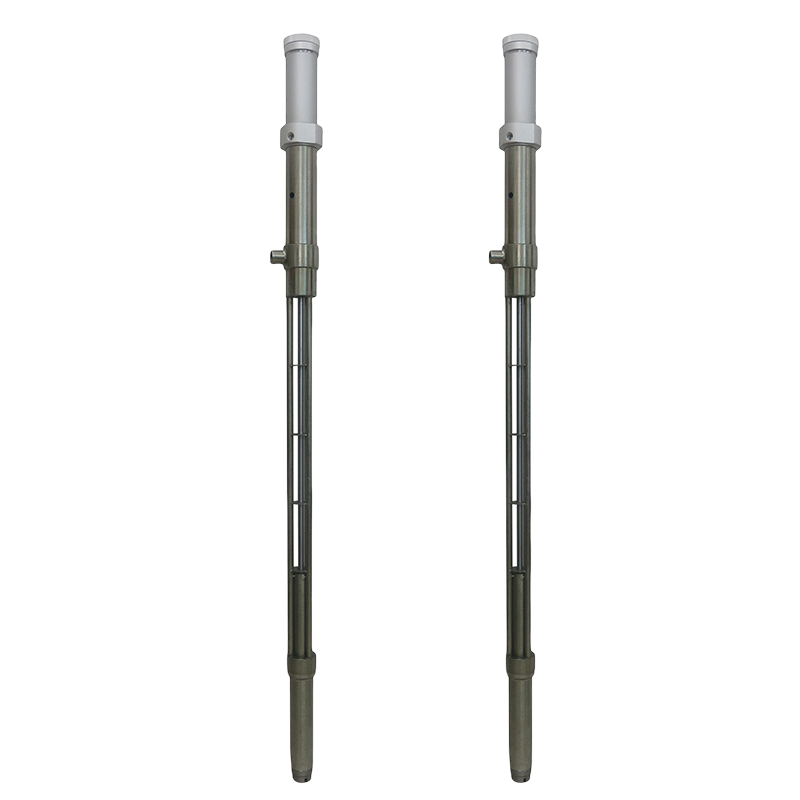

Polyurethane barrel pump is an important part of polyurethane polyurea spraying machine. Barrel pump is a pump specially designed to transfer or dispense polyurethane materials from containers such as barrels or drums. It has the characteristics of accurate flow, stable pressure, repeatability, and special material against from corrosion of liquid raw materials.
Application
Application：polyurethane foam /polyurea spray machine , PU foam for insulation, polyurea for waterproof, Interior and exterior walls of building houses，Cold storage，Workshops and factories，Animal farms，Mobile houses，Containers，Car compartments，Refrigerated trucks，Fishing boats，Other spraying foam industry，Pipes，Door panels，Cold storage panels，Seafood packaging boxes，Large storage tank insulation，Other injection foam industry.
Technical Parameters
| Model | New-Pump |
| Applicable models | K2000 K3000 K6000 |
| Air motor diameter | 70mm |
| Air source inlet size | ZG1/4’’ |
| Liquid outlet size | ZG1/2’’ |
| Pneumatic source | 0.4～0.9MPa |
| Max Fluid Working Pressure | 2.36MPa |
| Max flow output | 38KG/min |
| Max fluid temperature | 88℃ |
| Pump length | 1290mm |
| Pump weight | 9kg |

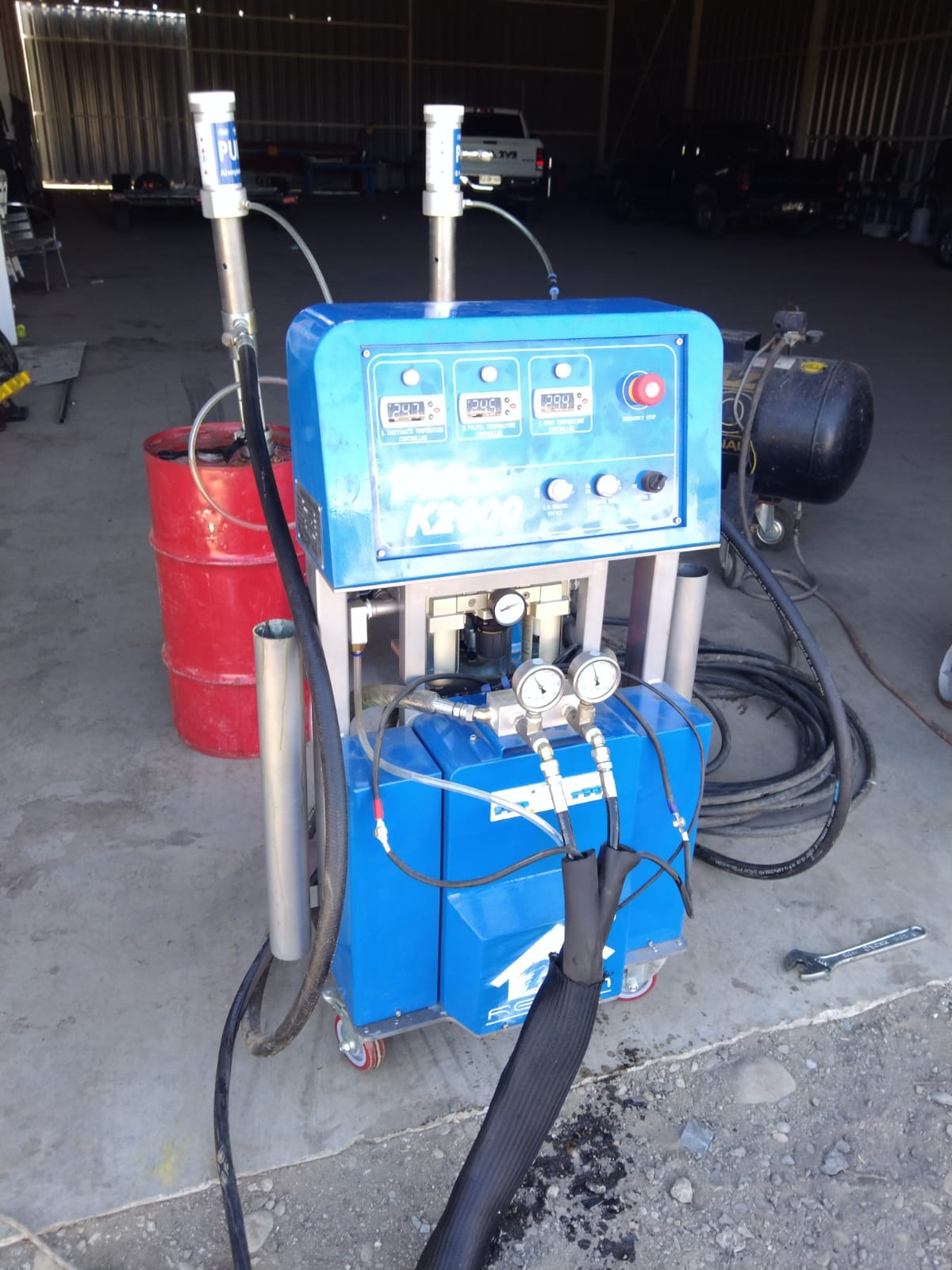

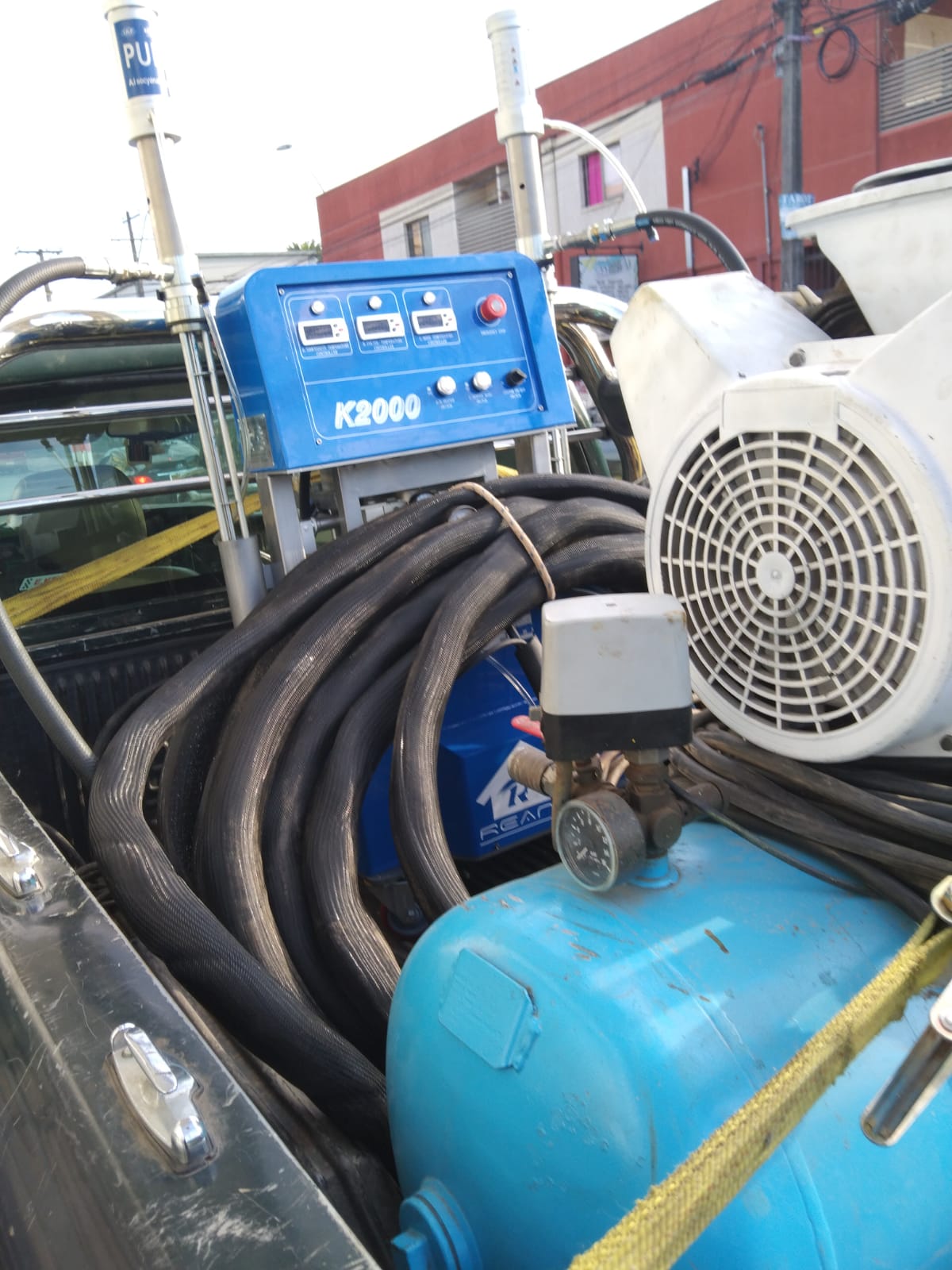

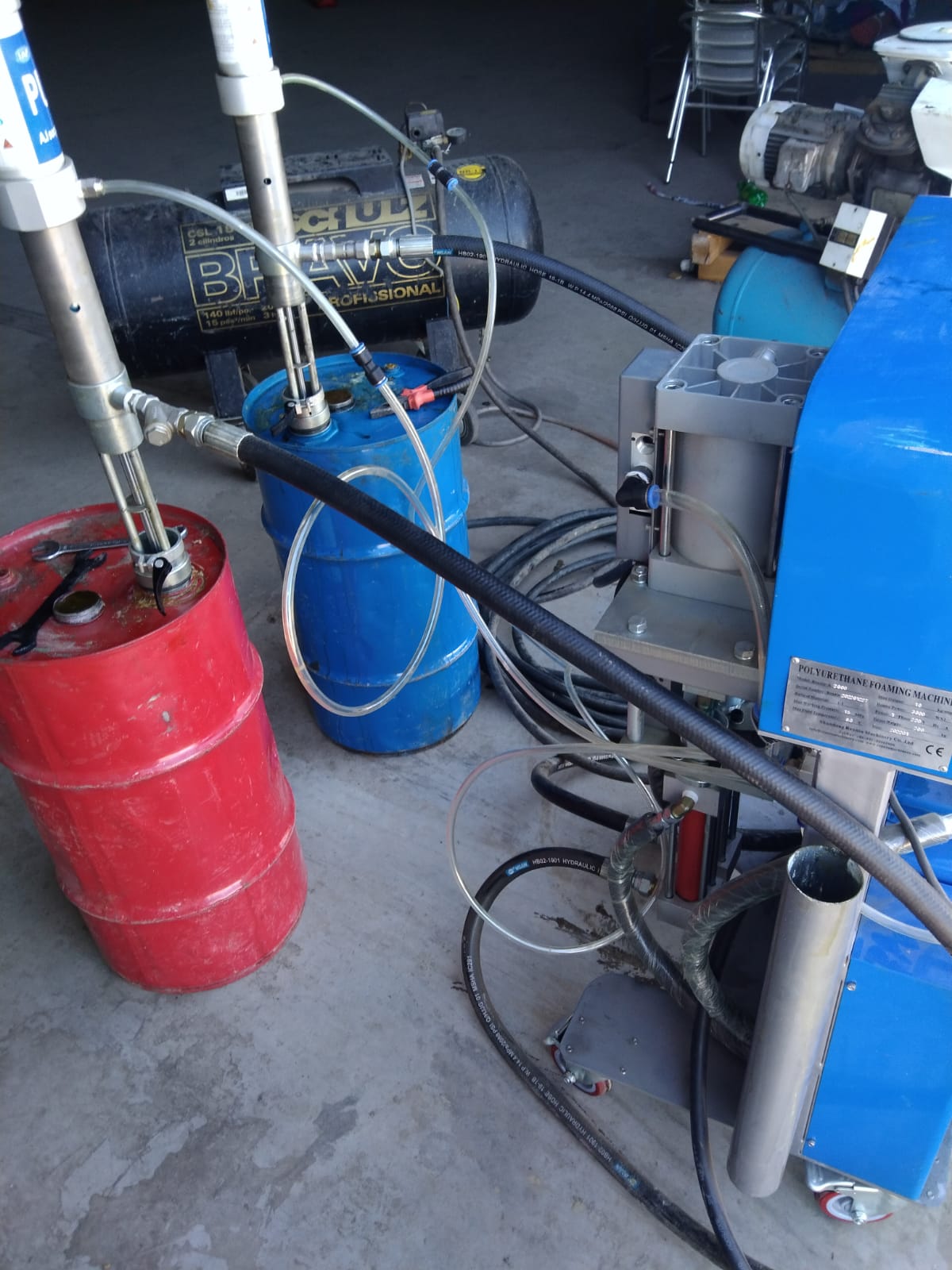

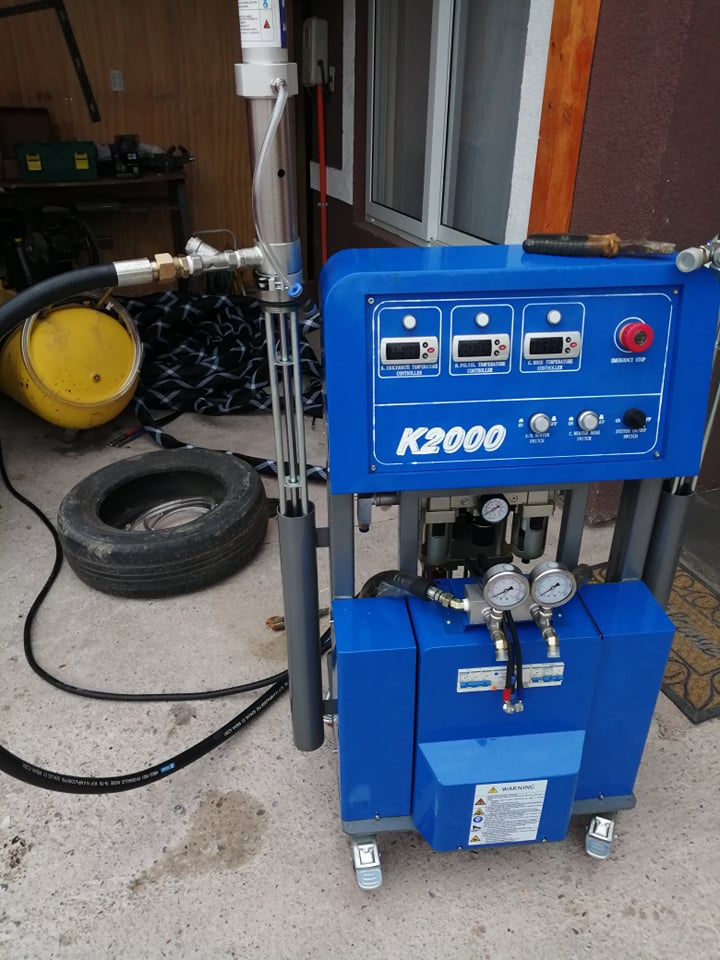

Customer Cases
FAQ
Q:Where is your company? Are you the manufacturer?
A: Yes, We are manufacturer, located in Jinan city, Shandong province.
Q: How can I get the spare parts for the machine?
A: We will send a set of additional spare parts along with the goods. International express is available when needed, which usually arrives in about 7 days.
Q:Is it in stock? When is the delivery date?
A: We will send the machine out within 7-10 days after receiving your payment, (Excluding customized products).
Q: I am new at this, How to use the machine?
A: Our machine is easy to opperate, we provide user manual and videos,We offer online guidance services.
Q:How long of heated hoses can be connected ?
A：It’s depends on your projects. It comes with 15m hose for each machine, some model can be connected max 90m-120m hose.
Q：Can I add my own logo? Can I resell your products locally?
A：Yes,sure. We provide customized services, including Logo, appearance, color, model, etc.
You can distribute our products locally, welcome to join us and become our agent.
