K7000
Reanin
8424899990
| polyurea for waterproof | polyurea spraying on ground for waterproof and anti-corrosion. | pu foaming for car interior insulation |
 |  |  |
| pu foaming machine for container insulation | K7000 hydraulic polyurea polyurethane foam spray machine. | Polyurethane foam spraying and injection for insulation in large industrial |
 |  |  |
Product Introduction

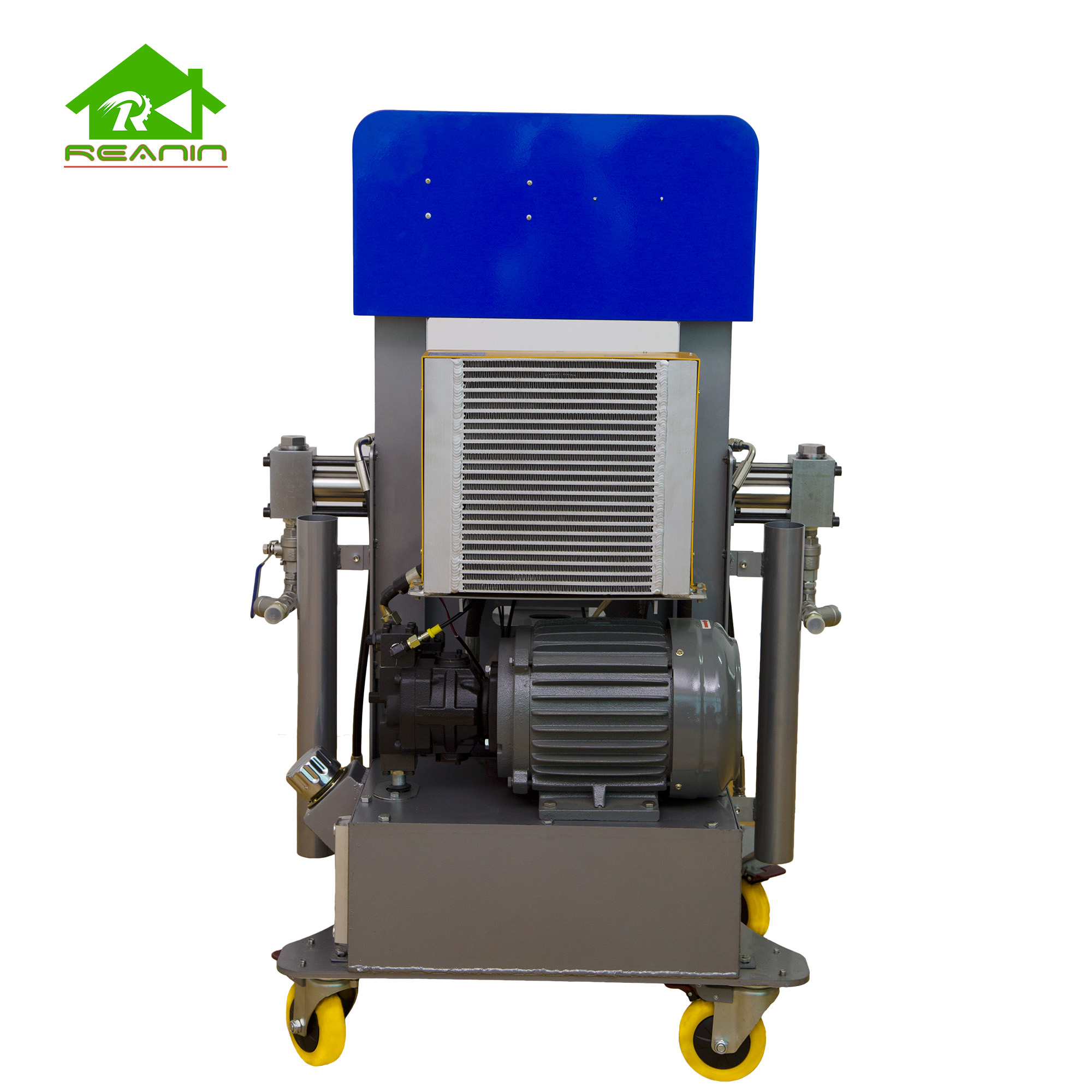

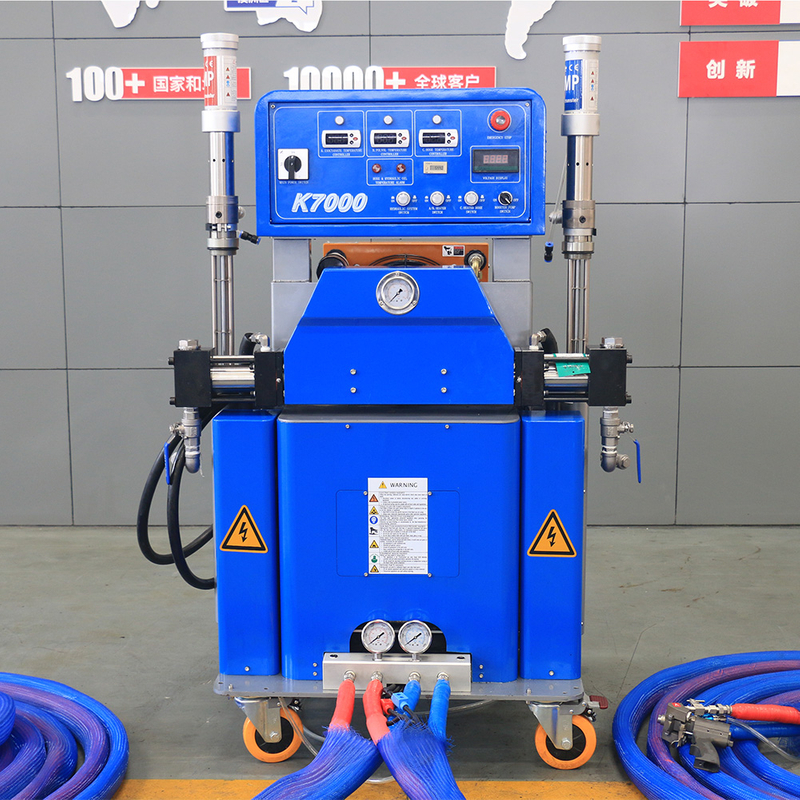

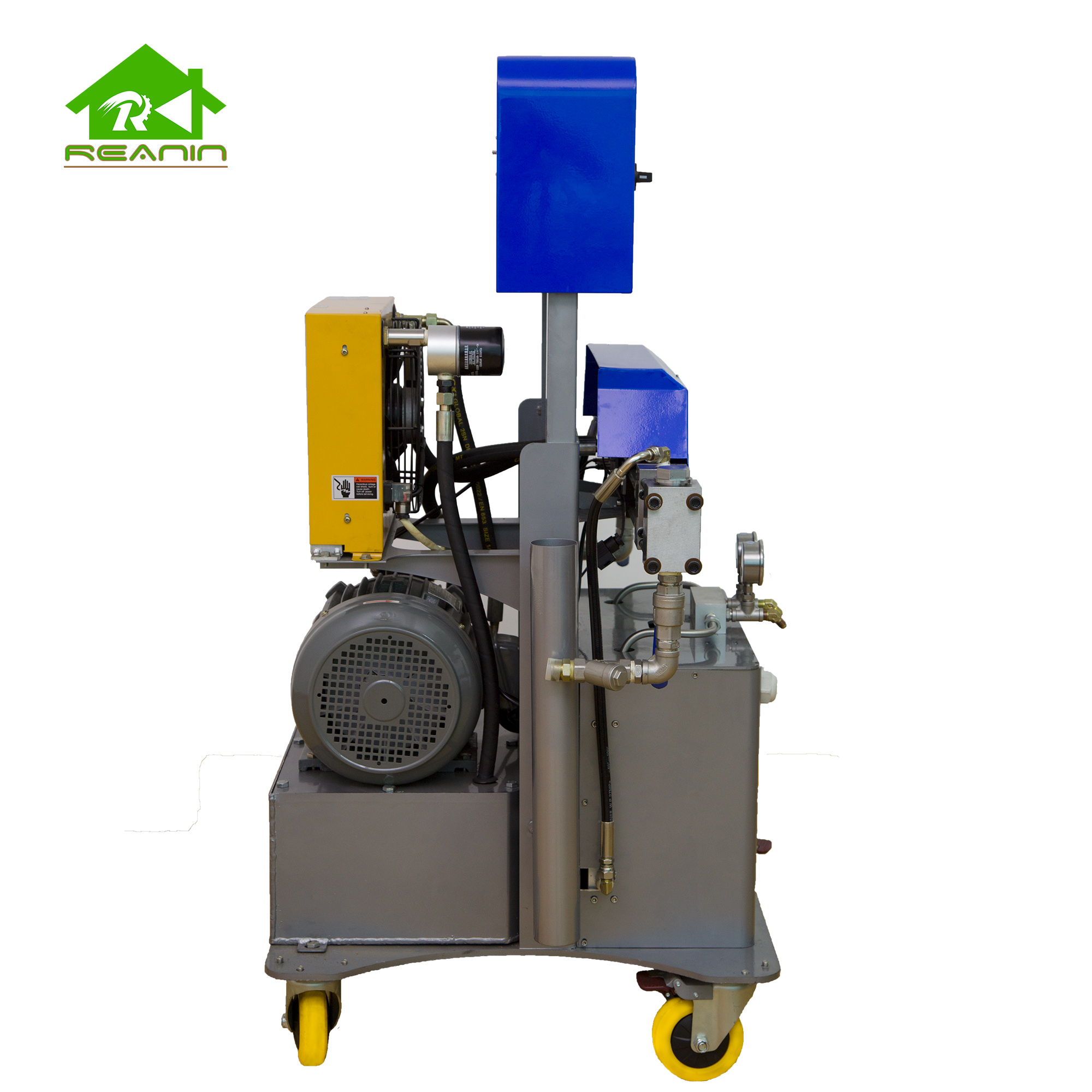

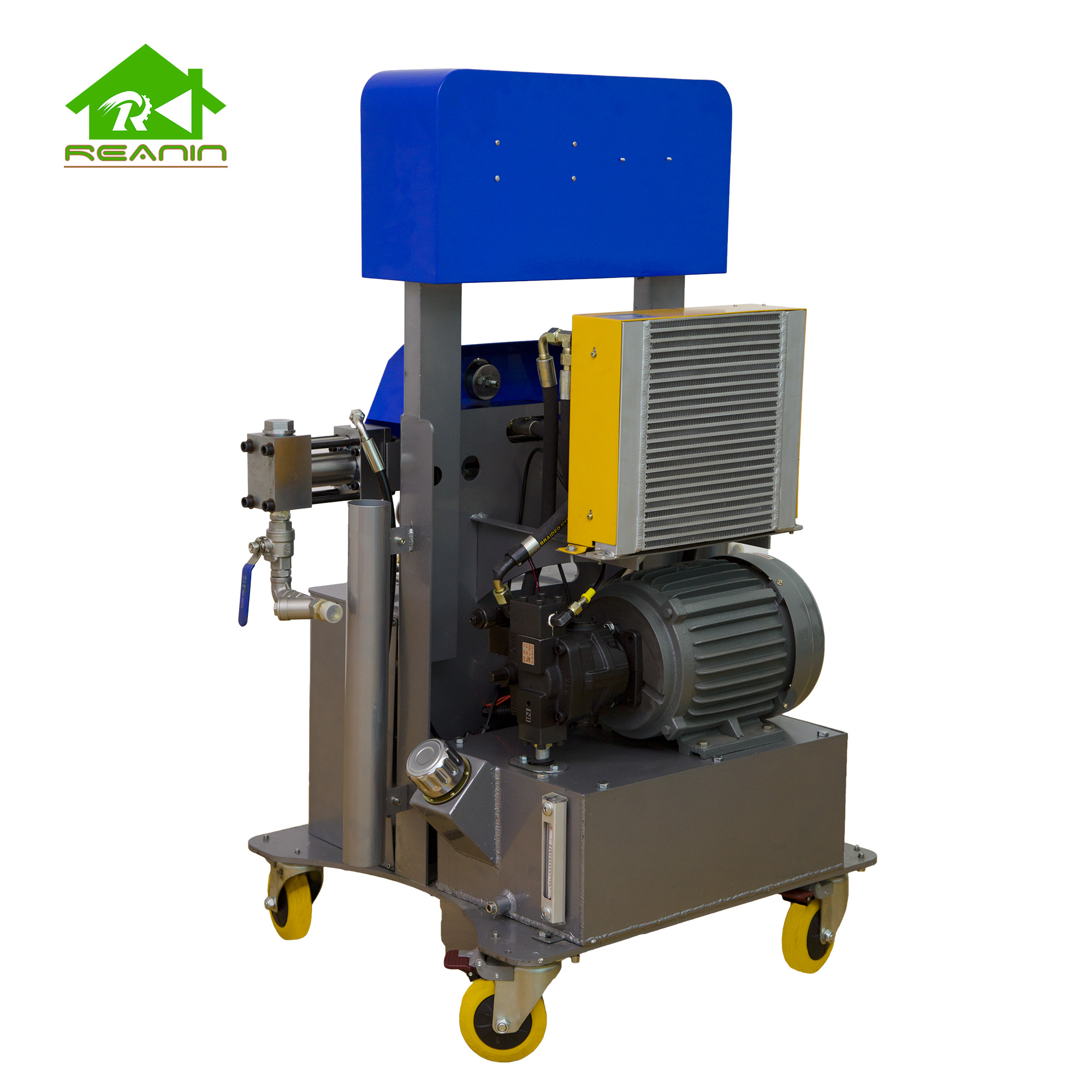

K7000 is a hydraulic driven, professional and large polyurethane polyurea spray machine. It is equipped with a horizontal booster pump, which not only has stable working pressure, but also has a large output. Suitable for mobile spray vehicle and large construction projects.
Application:

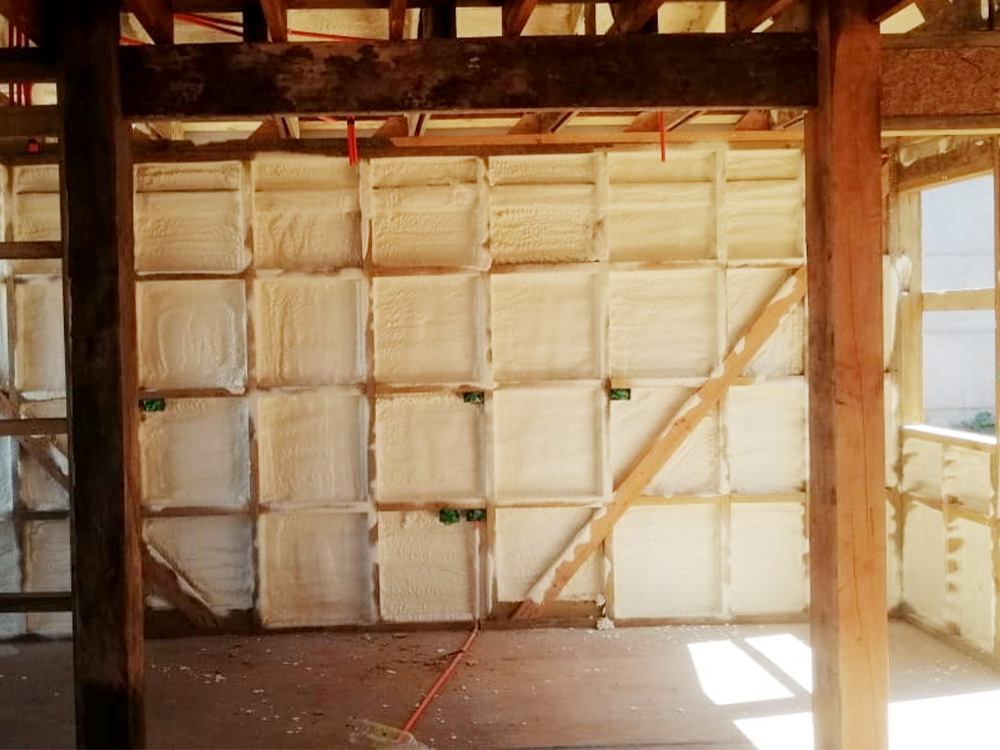

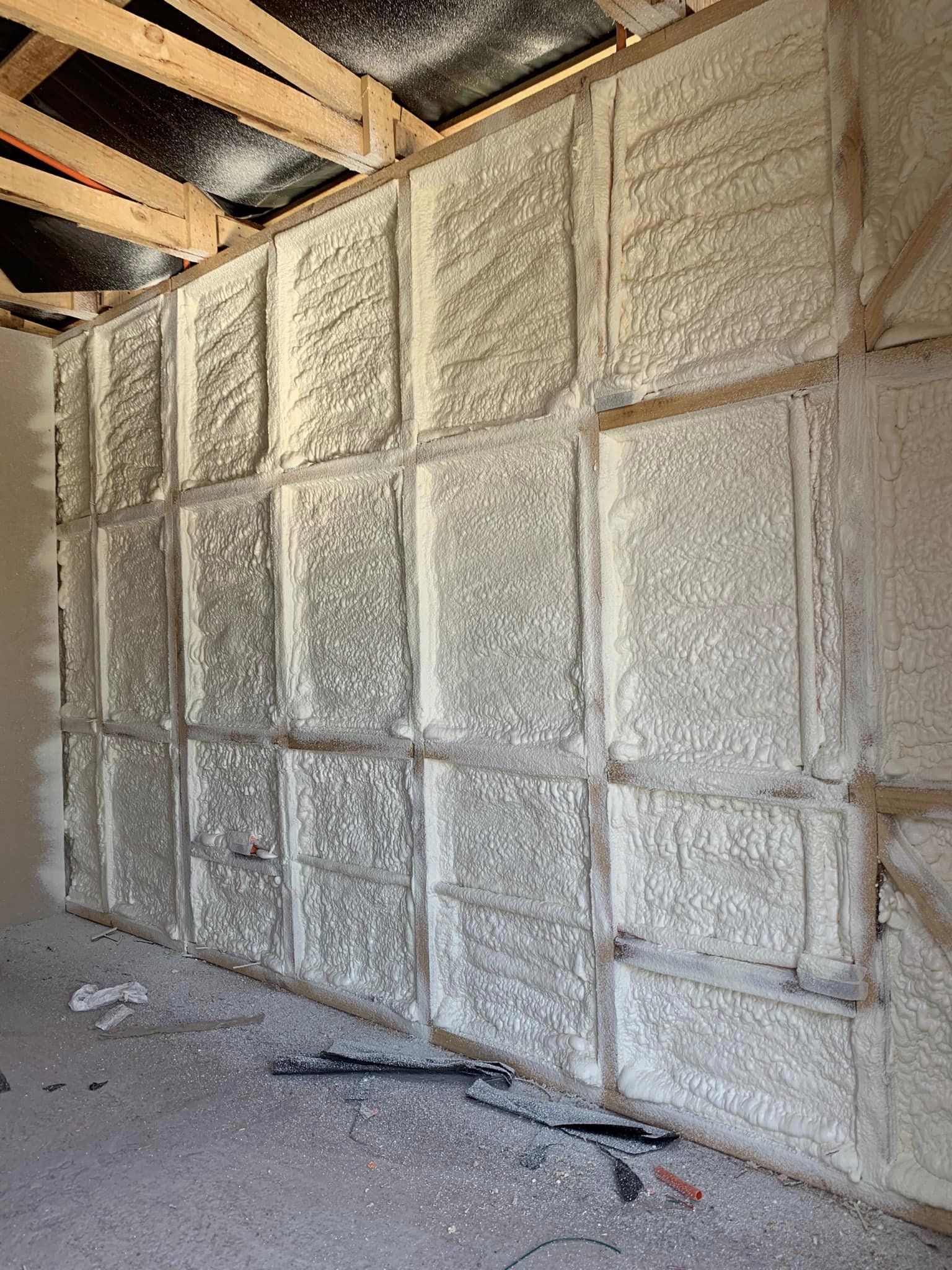

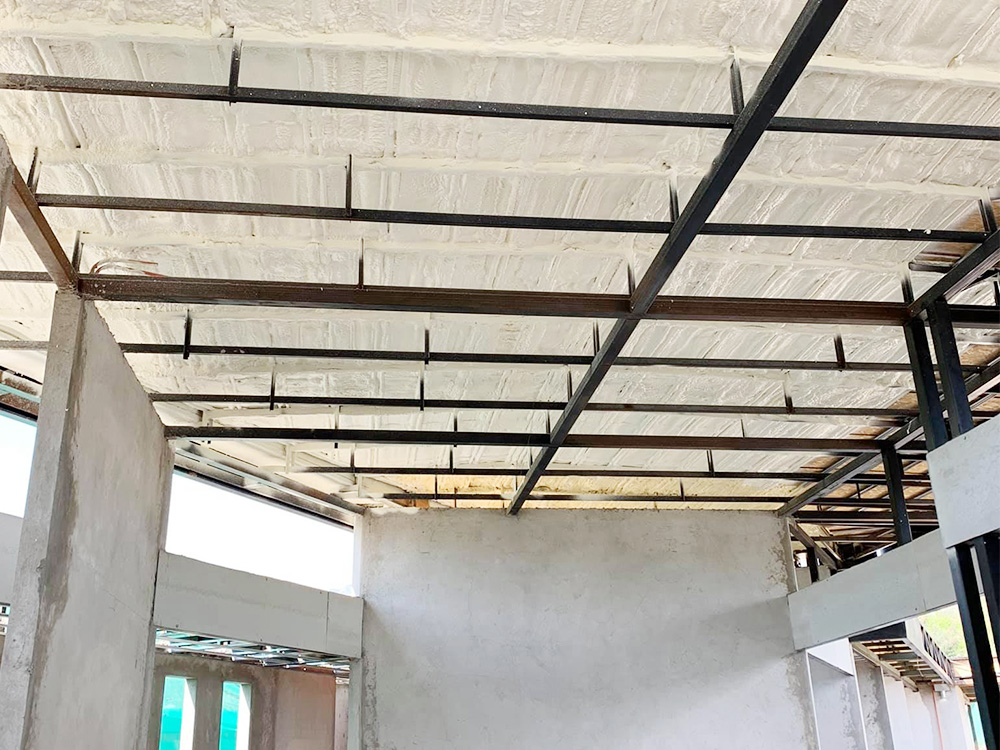

1. Polyurethane foam spray on wall & roof for insulation,

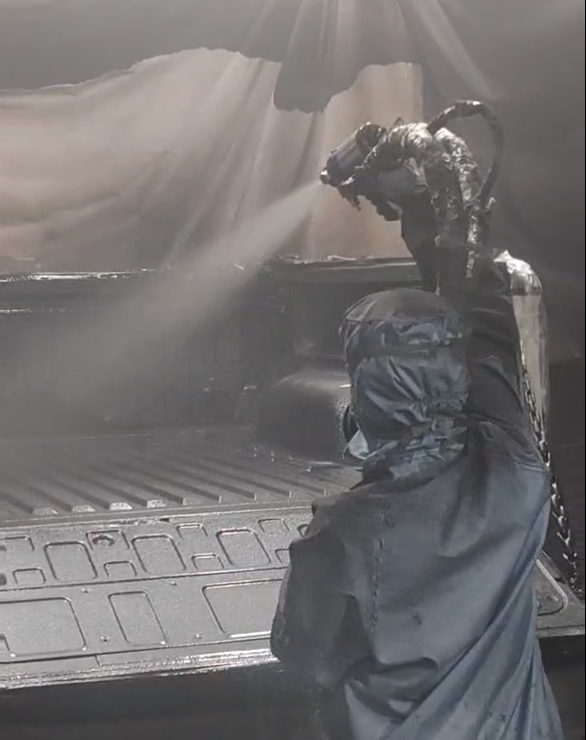

2. Polyurea spray for waterproof & anticorrosion,
3. Construction concrete slab raising/ lifting & seam filling injection,
4. Cold storage spray insulation,
5. Tank and pipe spray & injection polyurethane insulation,
6. Polyurethane foam for package cushioning,
7. Car roof spray insulation,
8. Highway, railway, automobile, watercraft, mining petroleum, electrical industry, food industry etc.
Product Advantage
•This machine has pass the CE certificate,
•Panel with operation tips is easy to set up,
•Equipped with hydraulic station, the working pressure is stable, and the effect of continuous spraying for a long time is good,
•The horizontal booster pump not only has a large output, but also has a stable working pressure. The coaxial design minimizes the wear and tear, and the service time lasts longer,
•The high-speed circulating lubricating fluid in the anti-curing lubrication cylinder can quickly take away the leakage of materials, and the ISO pump shaft is always immersed in the lubricating fluid to avoid crystallization,
•The hydraulic station is equipped with an over pressure and over temperature alarm device, which can protect the safety of equipment and users,
•A/B/Hose independent temperature control, can set different temperatures separately, adapt to the temperature requirements of different materials,
•Variable frequency temperature control mode and special real-time temperature collection sensor ensure that the material temperature is controlled within a small fluctuation range,
•The heated hose is wrapped around the heating belt, the heating is fast and uniform, and covered
with the insulation and protective cover, which is safe and durable,
•The transfer pumps, mainframe and spray gun are equipped with filtering devices, which can effectively filter impurities and crystals in the materials and reduce the occurrence of the blocking gun,
•High-precision pressure gauges are available in MPa and PSI to meet the needs of different customers,
•Equipped with an action counter to accurately calculate the amount of raw materials,
•The spray gun is made of alloy material, light weight, less wearing parts, easy to use and maintain.
Technical Parameters
| Model | Reanin-K7000 polyurethane and polyurea spray machine |
| Applicable materials | Polyurethane and Polyurea |
| The ratio of raw material | 1:1 |
| Viscosity range of raw materials | 200-1000CPS (under working temperature) |
| Max working pressure | 25MPa |
| Max fluid temperature | 80°C |
| Max output | 15kg/min |
| Max heated hose length | 120m |
| Heater power | 8000W×2 |
| Heated hose max power | 3500W |
| Drive mode | Hydraulic |
| Clean mode | Self-cleaning by air |
| Voltage (Optional) | Three phase 220V 60Hz or Three phase 380V 50Hz |
| Whole power | 24kw |
| Pneumatic source | 0.5-0.8Mpa 1m³/min |
Standard Configuration：
1 set mainframe, 1 set spray gun, 2 sets transfer pump, 15m heated hose，2 pcs transfer pump hose, 2 pcs whip hose, 1 set air pipe, 1 set tools and spare parts, 1 set English user manual，1 set protective clothing and mask .
FAQ
Q: Where is your company? Are you the manufacturer?
A：Yes, We are manufacturer, located in Jinan city, Shandong province.
Q: What's the warranty on this machine?
A: We provide one year warranty, and support lifelong consultant service.
Q: How can I get the spare parts for the machine?
A: We will send a set of additional spare parts along with the goods. International express is available when needed, which usually arrives in about 7 days.
Q:Is it in stock? When is the delivery date?
A: We will send the machine out within 7-10 days after receiving your payment, (Excluding customized products).
Q: I am new at this, How to use the machine?
A: Our machine is easy to opperate, we provide user manual and videos,We offer online guidance services.
