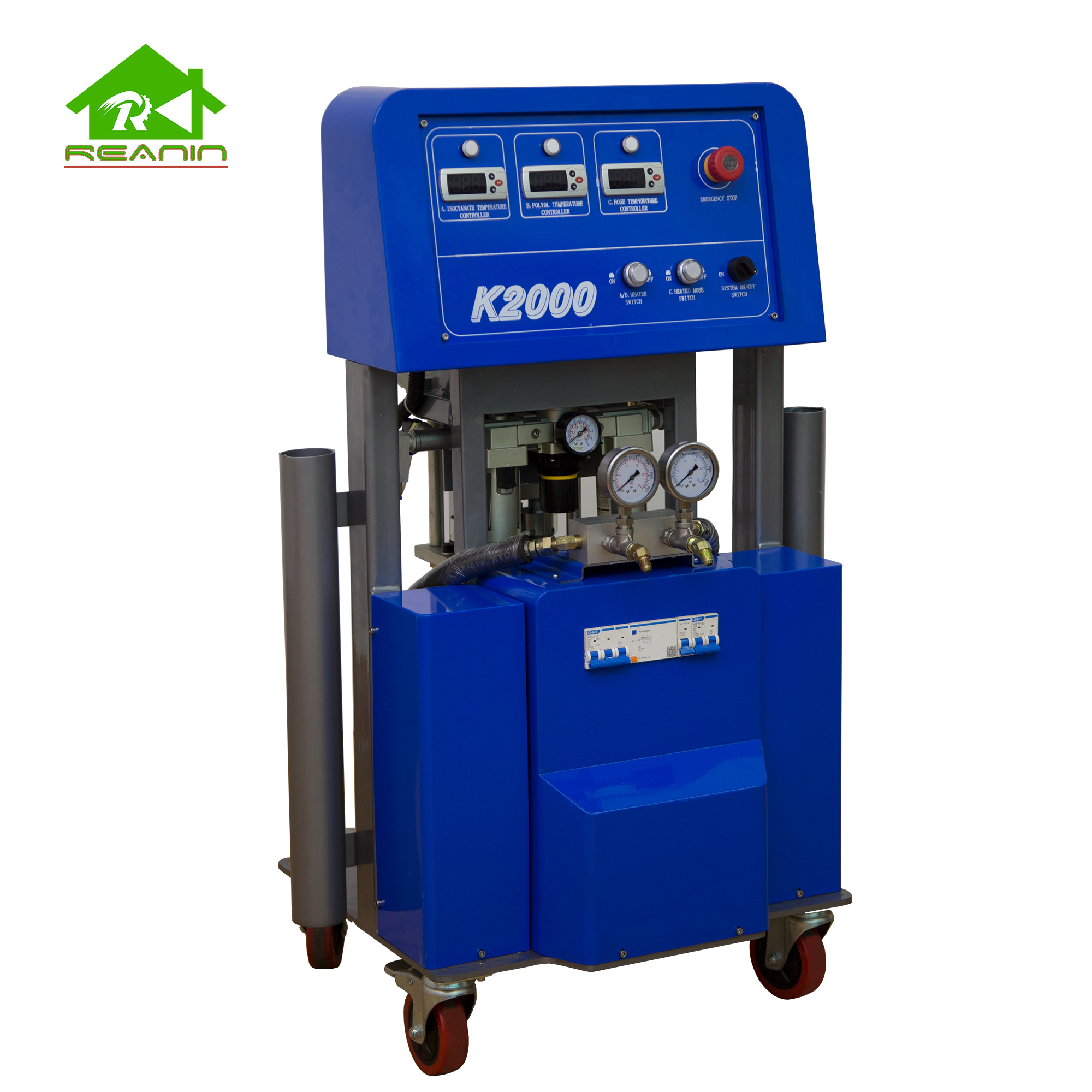

K2000 Polyurethane Spray & Injection Machine

Basic, Inexpensive and Portable Equipment

Product Introduction

Core Advantages

• CE certified for safe and reliable use

• Control panel with clear operation tips for easy setup

• Fully pneumatic design, operable without electricity

• Simple booster pump structure for easy disassembly and maintenance

• Stop reset function protects seals and pump shafts from ISO crystallization damage

• Independent temperature control for A/B material and hoses

• Variable frequency temperature control with real-time sensor ensures stable temperature

• Integrated heated hose with wear-resistant insulation for heat retention and safety

• Multi-stage filtration on transfer pumps, main unit and spray gun to prevent clogging

• Dual-unit high-precision pressure gauges (MPa / PSI)

• Action counter for accurate raw material calculation

• Lightweight alloy spray gun with few wearing parts

Technical Parameters

• Model: K2000 Polyurethane Spray Machine

• Applicable Material: Polyurethane

• Mixing Ratio: 1:1

• Viscosity Range: 200–1000 CPS (working temperature)

• Max Working Pressure: 20 MPa

• Max Fluid Temperature: 80°C

• Max Output: 10 kg/min

• Max Heated Hose Length: 60 m (optional)

• Heater Peak Power: 4500W × 2

• Heated Hose Max Power: 3000W

• Drive Mode: Full pneumatic

• Cleaning Mode: Air self-cleaning

• Voltage: 220V single-phase / 380V three-phase (optional)

• Total Power: 12 kW

• Air Supply: 0.5–0.8 MPa, 1 m³/min

Standard Configuration

• K2000 main unit × 1

• Transfer pumps × 2

• Transfer pump hoses × 2

• Air pipe set × 1

• English user manual × 1

• Spray gun × 1

• Heated hose (15 m) × 1

• Whip hoses × 2

• Tools and spare parts kit × 1

• Protective clothing and mask set × 1

Packaging & Transportation

• Package Dimensions (L×W×H): 90 × 75 × 143 cm

• Net Weight: 210 kg

• Gross Weight: 240 kg
