K3000
Reanin
8424899990
 |  |
 |  |
Product Introduction

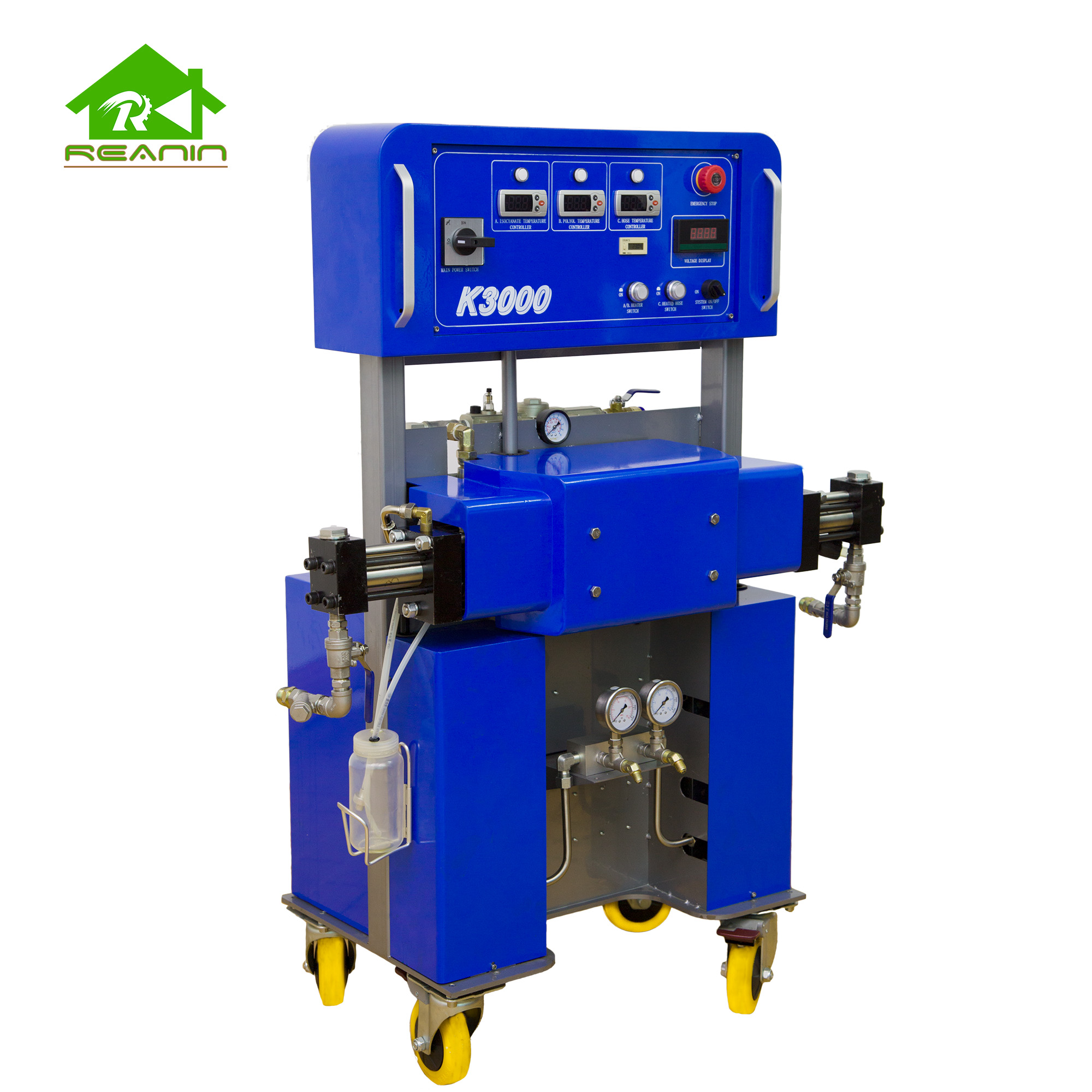

K3000 polyurethane foam spraying machine is a high pressure pneumatic driven machine. The working pressure is stable and the atomization effect is good. It is small, does not take up space, and can be moved.
Reanin K3000 PolyurethanePu Foam Machine can be widely used in construction building roof and wall insulation，pipe insulation, tank , cold storage thermal insulation and other fields.
Product Advantage
•This machine has pass the CE Certificate,
•Panel with operation tips is easy to set up,
•Fully pneumatic design, it can work normally without electricity,
•The horizontal booster pump adopts a coaxial mechanism and has the function of two-way supercharging. The working pressure fluctuation value is small, and the replacement of the wearing parts is simple,
•The high-speed circulating lubricating fluid in the anti-curing lubrication cylinder can quickly take away the leakage of materials, and the ISO pump shaft is always immersed in the lubricating fluid to avoid crystallization,
•A/B/Hose independent temperature control, can set different temperatures separately, adapt to the temperature requirements of different materials,
•Variable frequency temperature control mode and special real-time temperature collection sensor ensure that the material temperature is controlled within a small fluctuation range,

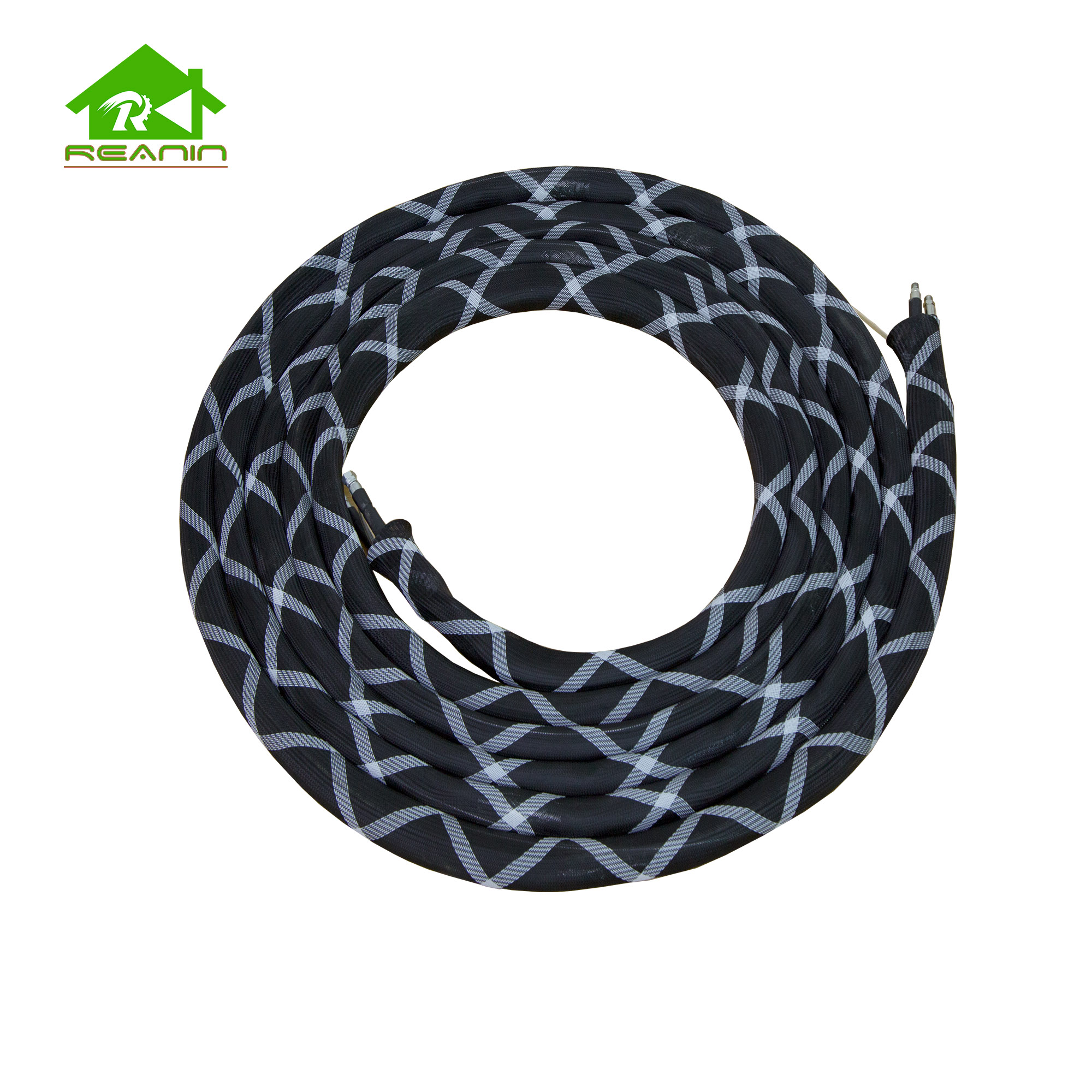

•The integrated heated hose is covered with wear-resistant insulating sleeve, which not only can effectively keep the temperature of the material, but also can prevent the occurrence of leakage, short circuit, etc.
•The transfer pumps, mainframe and spray gun are equipped with filtering devices, which can effectively filter impurities and crystals in the materials and reduce the occurrence of the blocking gun,
•High-precision pressure gauges are available in MPa and PSI to meet the needs of different customers,
•Equipped with an action counter to accurately calculate the amount of raw materials,

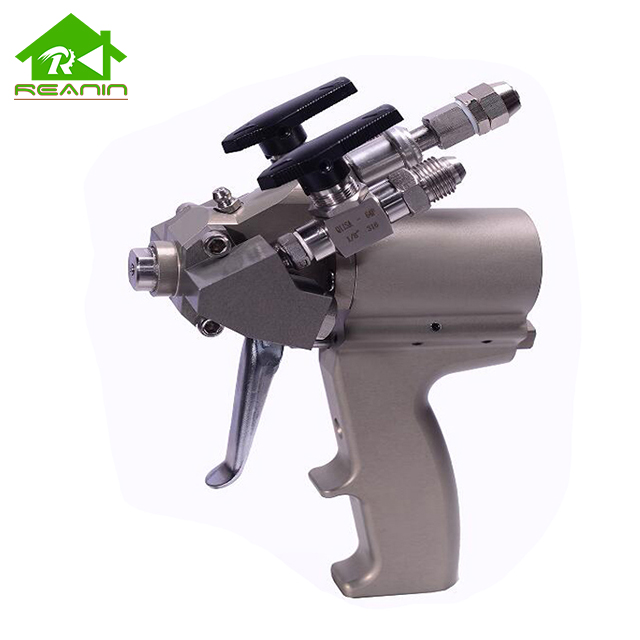

•The spray gun is made of alloy material, light weight, less wearing parts, easy to use and maintain.
Technical Parameters
| Model | Reanin-K3000 Polyurethane Spray Machine |
| Applicable materials | Polyurethane |
| The ratio of raw material | 1:1 |
| Viscosity range of raw materials | 200-1000CPS (under working temperature) |
| Max working pressure | 20MPa |
| Max fluid temperature | 80°C |
| Max output | 11kg/min |
| Max heated hose length (Optional) | 90m |
| Heater power | 4500W×2 |
| Heated hose max power | 3000W |
| Drive mode | Full pneumatic |
| Clean mode | Self-cleaning by air |
| Voltage (Optional) | Single phase 220V 50Hz or Three phase 380V 50Hz |
| Whole power | 13kw |
| Pneumatic source | 0.6-0.9Mpa 1m³/min |
Standard Configuration
| Reanin-K3000 mainframe | 1 set | Heated hose | 15m |
| Reanin spray gun | 1 set | Transfer pump hose | 2 pcs |
| Transfer pump | 2 sets | Whip hose | 2 pcs |
| Air pipe | 1 set | Tools and spare parts | 1 set |
| English user manual | 1 set |

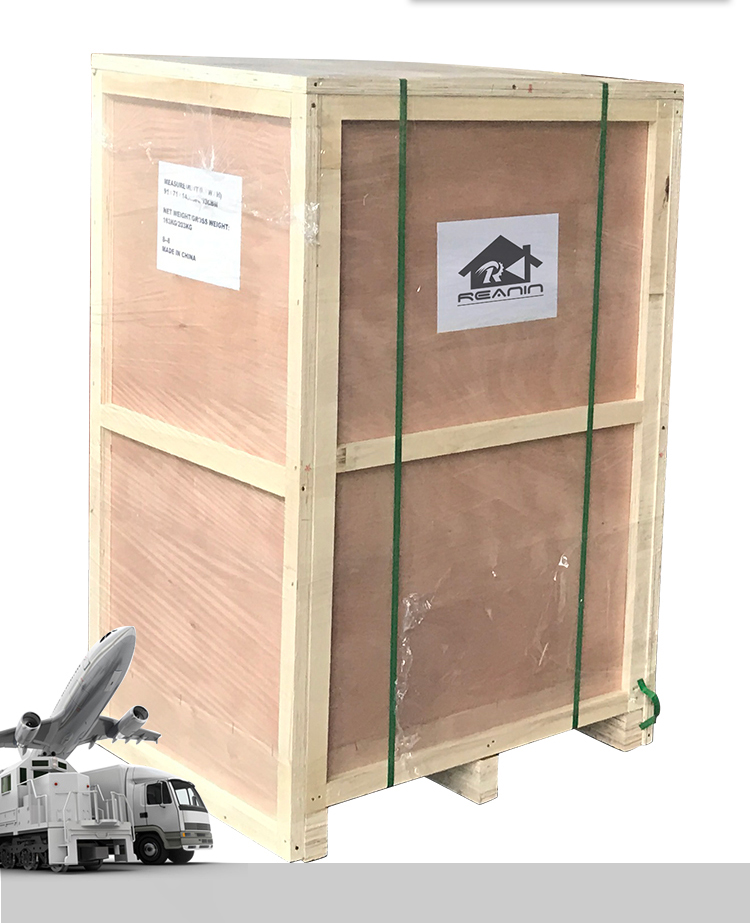

| Transportation Parameters (Based on standard configuration) | |
| Model | Reanin-K3000 Polyurethane Spray Machine |
Package size (LXWXH) | 110X80X145cm |
| Net weight | 183kg |
| Gross weight | 220kg |
FAQ
Q: Where is your company? Are you the manufacturer?
A：Yes, We are manufacturer, located in Jinan city, Shandong province.
Q: What's the warranty on this machine?
A: We provide one year warranty, and support lifelong consultant service.
Q: How can I get the spare parts for the machine?
A: We will send a set of additional spare parts along with the goods. International express is available when needed, which usually arrives in about 7 days.
Q: Is it in stock? When is the delivery date?
A: We will send the machine out within 7-10 days after receiving your payment, (Excluding customized products).
Q: I am new at this, How to use the machine?
A: Our machine is easy to opperate, we provide user manual and videos,We offer online guidance services.
| |
| |
Product Introduction

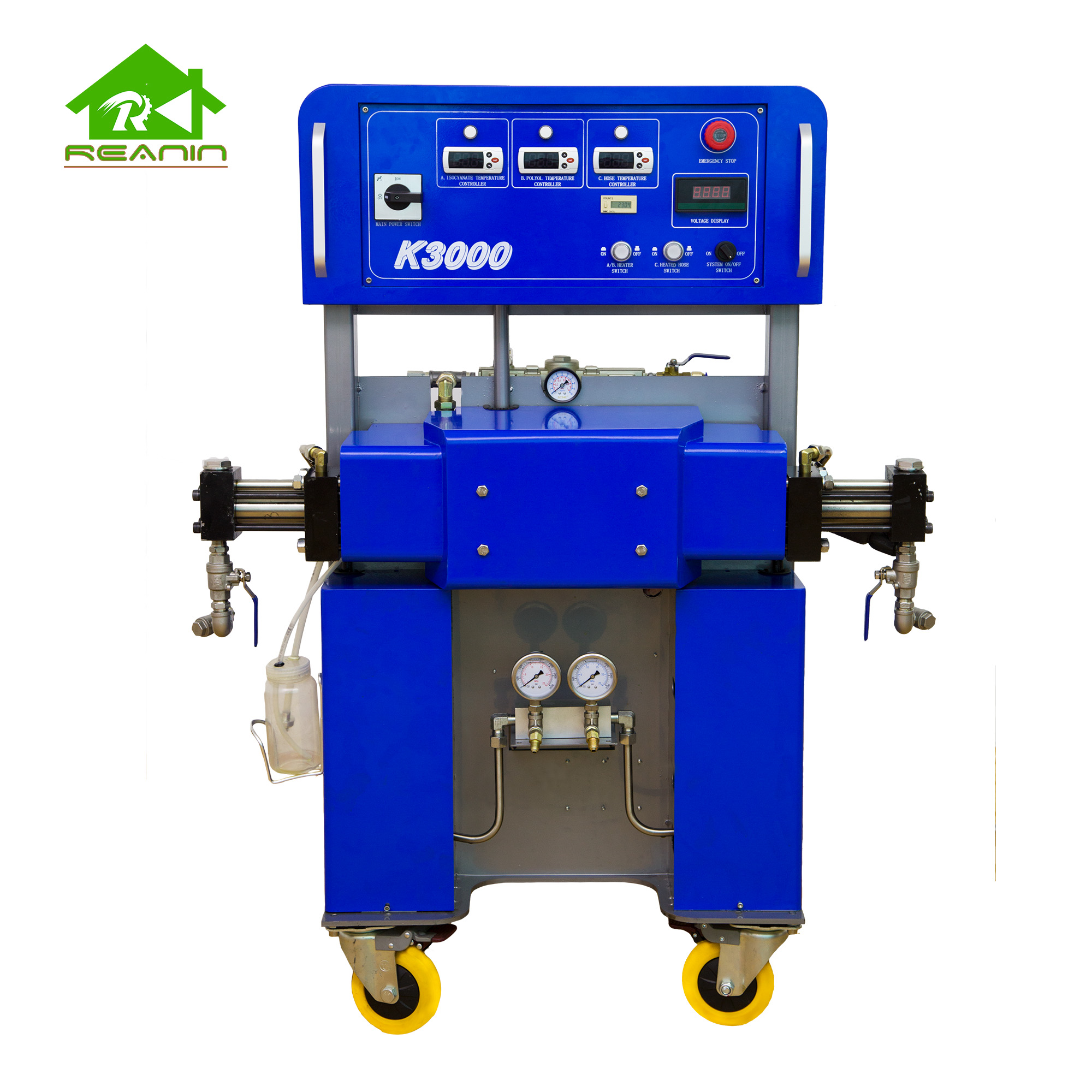

K3000 polyurethane foam spraying machine is a high pressure pneumatic driven machine. The working pressure is stable and the atomization effect is good. It is small, does not take up space, and can be moved.
