Polyurea Polyurethane Spraying Foam Machine

Home » Products » Polyurea Spray Machine » Polyurea Polyurethane Spraying Foam Machine

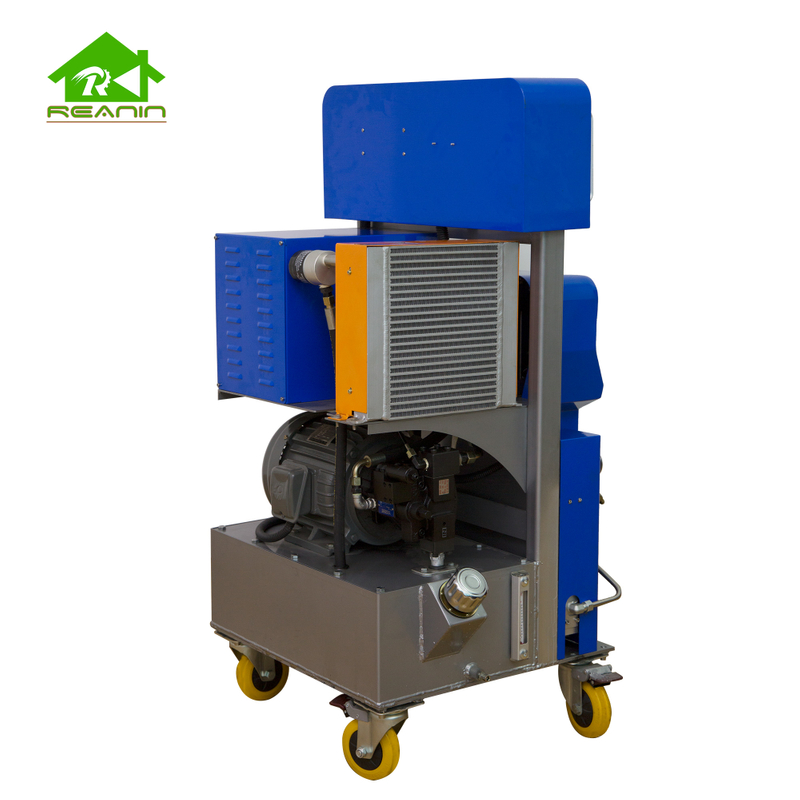

K6000 Polyurethane & Polyurea Spray Machine For Waterproof

Polyurea Polyurethane Spraying Foam Machine

Name: Polyurea Polyurethane Spraying Foam Machine
Brand: Reanin
Rating: 5.0 (13 reviews)


Availability:

Quantity:

Inquire Add to Basket

Model:
K6000
Brand:
Reanin
Code:
8424899990

K6000 is a hydraulically driven polyurethane polyurea spray machine. It has the characteristics high working pressure, stable pressure and large spray output. It is especially suitable for large-scale spraying construction.
Reanin K6000 High pressure pu foam and polyurea coating Machine can be widely used in construction building roof and wall insulation, roof waterproofing, swimming pool waterproofing，pipe insulation, tank , cold storage thermal insulation, stadium ground and spectator seats waterproofing,highway subgrade waterproofing or repairing, railway subgrade waterproofing, automobile thermal insulation and sound insulation, ship anti-corrosion and waterproofing and so on.

Product Description

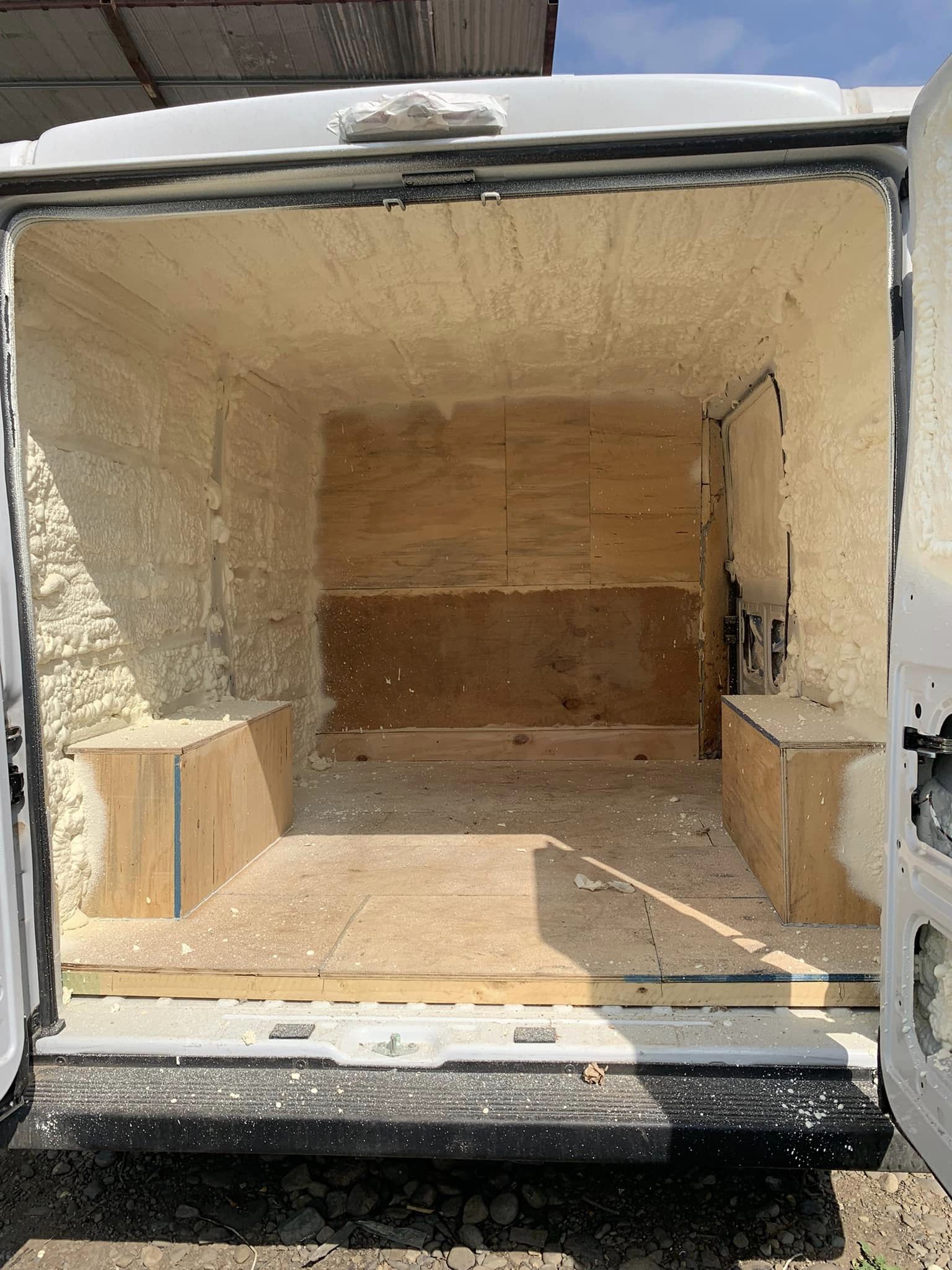

polyurea for waterproof	polyurea spraying on ground for waterproof and anti-corrosion.	pu foaming for car interior insulation

Product Overview

One machine, three chemistries: pure polyurea, hybrid polyurea, high-density polyurethane foam
15 kg/min peak output = 1 000 m² roof waterproofing finished before lunch
90 m heated hose reach without moving the skid—ideal for high-rise decks & tank farms
Full-pneumatic drive, 35 MPa max pressure, ATEX-certified for Zone 2 explosive areas
Why Choose Reanin H-Pro 35?
Engineered ROI
Contractors report 32 % reduction in material waste versus hydraulic units thanks to closed-loop ratio control. On a typical 2 000 m² roof, that equals 180 kg of saved polyurea—USD 1 200 back in your pocket per job.
24-hour global supply chain
We maintain bonded warehouses in Houston, Dubai, and Antwerp. 92 % of spare parts ship within 24 h, minimising downtime during peak season.
Training that sticks
Every machine includes a 3-hour virtual onboarding plus on-site certification (travel on buyer’s account). Your crew receives a wallet card recognised by NACE and SSPC for polyurea application.
Future-proof firmware
USB-C port on the PLC allows free firmware updates—add new spray patterns, languages, or data protocols without changing hardware. Protects your capital investment across decade-long asset cycles.
Green credentials
Solvent-free air-purge eliminates 200 L of acetone per month typical of older units. Lower VOC exposure keeps your site within LEED v4.1 emission limits and reduces insurance premiums.
Frequently Asked Questions
Q1: Can the H-Pro 35 handle high-viscosity aromatic polyurea above 1 000 CPS?
Yes. The 35 MPa peak pressure and 23:1 air intensifier ratio push viscosities up to 1 500 CPS at 70 °C. For heavier formulations we supply a 2 mm bored mixing chamber to reduce back-pressure.
Q2: How fast can we switch from spraying to injection mode?
Simply swap the spray tip for a pour spout—30 seconds. The self-cleaning chamber eliminates solvent flush; you only need 5 bar of shop air for 8 seconds. No disassembly, no downtime.
Q3: What compressor size is mandatory?
Minimum 7.5 kW (10 HP) rotary screw delivering 1.2 m³/min at 7 bar continuously. A 200 L receiver tank is recommended to cushion air consumption peaks during gun trigger events.
Q4: Does the unit support data logging for government QA paperwork?
Absolutely. The PLC stores date, start/stop time, actual pressure, temperature, and stroke count on a 32 GB SD card. Files export as .csv and can be imported into Excel or your CMMS.
Q5: Is on-site startup training included?
We provide 3-hour remote video training within 7 days of delivery. Optional on-site certification (1 day) is available worldwide; customer covers travel and accommodation.
Q6: What is the shelf life of wearing parts?
Mixing chamber: 20 000 kg of material; side seals: 8 000 kg; feed pumps: 50 000 kg. All consumables are off-the-shelf worldwide and ship within 48 h from our regional hubs.
60 kg net weight, fits through a 70 cm doorway—elevator friendly
ISO 9001 & CE, UKAS calibration certificates supplied for government tenders

Product Description

 Picture a winter morning on a 20-storey roof: the wind is cutting, the deck is wet, and your crew has only a six-hour closure window. With the Reanin H-Pro 35 you roll the unit off the lift, connect a single 90 m hose, and start laying a seamless 4 mm polyurea membrane at –5 °C without pre-heating the substrate. The material cures in 12 seconds; you walk away with a bubble-free, pin-hole-free, UV-stable barrier that will still be flexible at –40 °C. That is not a feature list—it is the story your team will tell the project owner when you hand over the warranty.

 Behind the story is a patented air-over-hydraulic intensifier that keeps A/B ratio within ±1 % even when barrel level drops; a dual-zone 11 kW heater that hits 80 °C in 9 minutes; and a 0.9 kg forged-aluminium spray gun that lets an operator work a full shift without wrist fatigue. The H-Pro 35 was engineered for contractors who need to move fast, bid aggressively, and sleep well at night.

Technical Parameters

Model	Reanin-K6000 polyurethane and polyurea spray machine
Applicable materials	Polyurethane and Polyurea
The ratio of raw material	1:1
Viscosity range of raw materials	200-1000CPS (under working temperature)
Max working pressure	25MPa
Max fluid temperature	80°C
Max output	15kg/min
Max heated hose length (Optional)	90m
Heater power	4500W×2
Heated hose max power	3000W
Drive mode	Hydraulic
Clean mode	Self-cleaning by air
Voltage (Optional)	Three phase 220V 60Hz or Three phase 380V 50Hz
Whole power	17kw
Pneumatic source	0.5-0.8Mpa 1m³/min

K6000(1)

Standard Configuration

Reanin-K6000 mainframe	1 set	Heated hose	15m
Reanin spray gun	1 set	Transfer pump hose	2 pcs
Transfer pump	2 sets	Whip hose	2 pcs
Air pipe	1 set	Tools and spare parts	1 set
English user manual	1 set

20231025-01 xw3

Key Features & Highlights

 Precision under real-world chaos

±1 % ratio tolerance verified by real-time gear-flow sensors—no off-ratio callbacks
Digital stroke counter converts material consumption into litres, kilograms, and square metres; export CSV for client reports

 Built for cold, wind, and overtime

11 kW dual-zone heater + 3 kW hose tracing = 80 °C at the gun after 90 m run
Insulated hose jacket keeps surface < 45 °C—safe to touch on hot roofs

 Uptime > downtime

Pneumatic drive: no electric motor to burn out, no hydraulic oil to leak on deck
Self-cleaning mixing chamber purges in 8 s; switch from polyurea to foam without solvent flush

 One gun, three jobs

Swap 30-second modular tip: 2 mm round for waterproofing, 8 mm fan for insulation, 12 mm pour for joint filling—no tools required

 Logistics friendly

890 × 650 × 1 050 mm skid passes standard doorways and lift gates
60 kg dry weight—two people can carry upstairs; forklift pockets on base

xw1

Application Scenarios

 Roof & deck waterproofing
Lay a 4 mm monolithic membrane over 1 000 m² in a single shift—no fasteners, no overlaps, no heat welding. The coating maintains 300 % elongation at –40 °C, eliminating freeze-thaw cracks common to bitumen sheets.

 Secondary containment & tank lining
Spray a chemical-resistant 2 mm skin inside petrochemical tanks or diked areas. Polyurea sets in 12 s, allowing same-day hydro-testing and faster plant start-up.

 Cold-storage envelopes
Apply 50 mm closed-cell PU foam (λ = 0.022 W/m·K) to −25 °C freezer walls without shutdown. The H-Pro 35 keeps A/B at 60 °C even when ambient is 0 °C, preventing density drift.

 Bridge & parking deck surfacing
Combine primer-less polyurea with broadcast aggregate for a 4 mm skid-resistant wearing course. Achieve 25-year design life under 4 000 kg wheel loads.

 Mining & pipeline anticorrosion
Spray 2 mm polyurea over FBE or steel—resists 15 % HCl and 30 % NaCl slurry. One pass replaces three coats of epoxy-polyurethane, cutting labour by 45 %.

K6000-2024 01

Advantage

Experience the pinnacle of spraying technology with our Polyurea Polyurethane Spraying Foam Machine. This state-of-the-art equipment is designed to meet the highest industry standards, ensuring efficiency, reliability, and superior performance. Here’s why it stands out:

CE Certified Quality: Our machine has passed the stringent CE certification, guaranteeing compliance with international safety and quality standards.
User-Friendly Operation: Featuring a panel with clear operation tips, setup is intuitive and hassle-free, making it accessible even for novice users.
Stable Hydraulic Performance: Equipped with a hydraulic station, it maintains a consistent working pressure, ideal for prolonged, continuous spraying with excellent results.
Advanced Lubrication System: The high-speed circulating lubricating fluid in the anti-curing cylinder swiftly removes any material leakage, while the ISO pump shaft remains submerged in lubricant, preventing crystallization and extending the machine’s lifespan.
Precise Temperature Control: Independent temperature control for A/B/Hose allows for separate settings, catering to the specific temperature requirements of various materials.
Variable Frequency Temperature Control: This mode, combined with a real-time temperature sensor, ensures minimal temperature fluctuations, enhancing the consistency of your spraying.
Efficient Heating Design: The heated hose, wrapped with a heating belt, provides rapid and uniform heating, covered by an insulating protective sleeve for added safety and durability.
Multi-Level Filtration: Transfer pumps, the mainframe, and the spray gun are all equipped with filters, effectively removing impurities and crystals from materials, significantly reducing the risk of gun blockage.
High-Precision Gauges: Offering pressure readings in both MPa and PSI, these gauges cater to a diverse customer base with varying measurement preferences.
Accurate Material Measurement: An integrated action counter precisely calculates the amount of raw materials used, aiding in cost management and quality control.

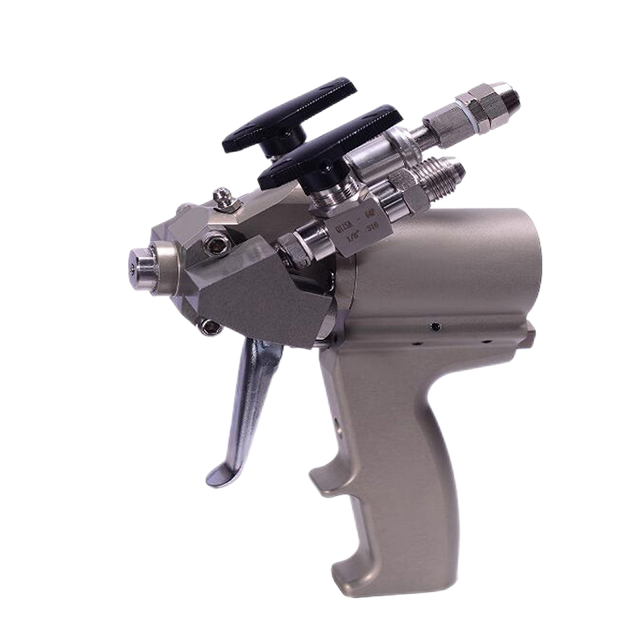

Durable Spray Gun: Crafted from alloy material, the spray gun is lightweight, features minimal wearing parts, and is easy to use and maintain.

After-Sales Service

Our commitment to customer satisfaction extends beyond the sale with comprehensive after-sales support:

One-Year Warranty: Enjoy peace of mind with our one-year warranty covering any manufacturing defects.
Video Technical Support: Access detailed video tutorials to quickly master the machine’s operation and maintenance.
Free Spare Parts: During the warranty period, certain spare parts are provided free of charge.
24/7 Online Support: Our professional team is available around the clock to assist with any queries or issues.
Timely Shipping: Orders are dispatched within seven days, minimizing your wait time.

FAQ

FAQ

Q:Where is your company? Are you the manufacturer?

A: Yes, We are manufacturer, located in Jinan city, Shandong province.

Q: How can I get the spare parts for the machine?

A: We will send a set of additional spare parts along with the goods. International express is available when needed, which usually arrives in about 7 days.

Q:Is it in stock? When is the delivery date?

A: We will send the machine out within 7-10 days after receiving your payment, (Excluding customized products).

Q: I am new at this, How to use the machine?

A: Our machine is easy to opperate, we provide user manual and videos,We offer online guidance services.

Q:How long of heated hoses can be connected ?

A：It’s depends on your projects. It comes with 15m hose for each machine, some model can be connected max 90m-120m hose.

Q：Can I add my own logo? Can I resell your products locally?

A：Yes,sure. We provide customized services, including Logo, appearance, color, model, etc.

You can distribute our products locally, welcome to join us and become our agent.
