Closed Cell Foam Polyurethane Spray & Injection Insulation Machine

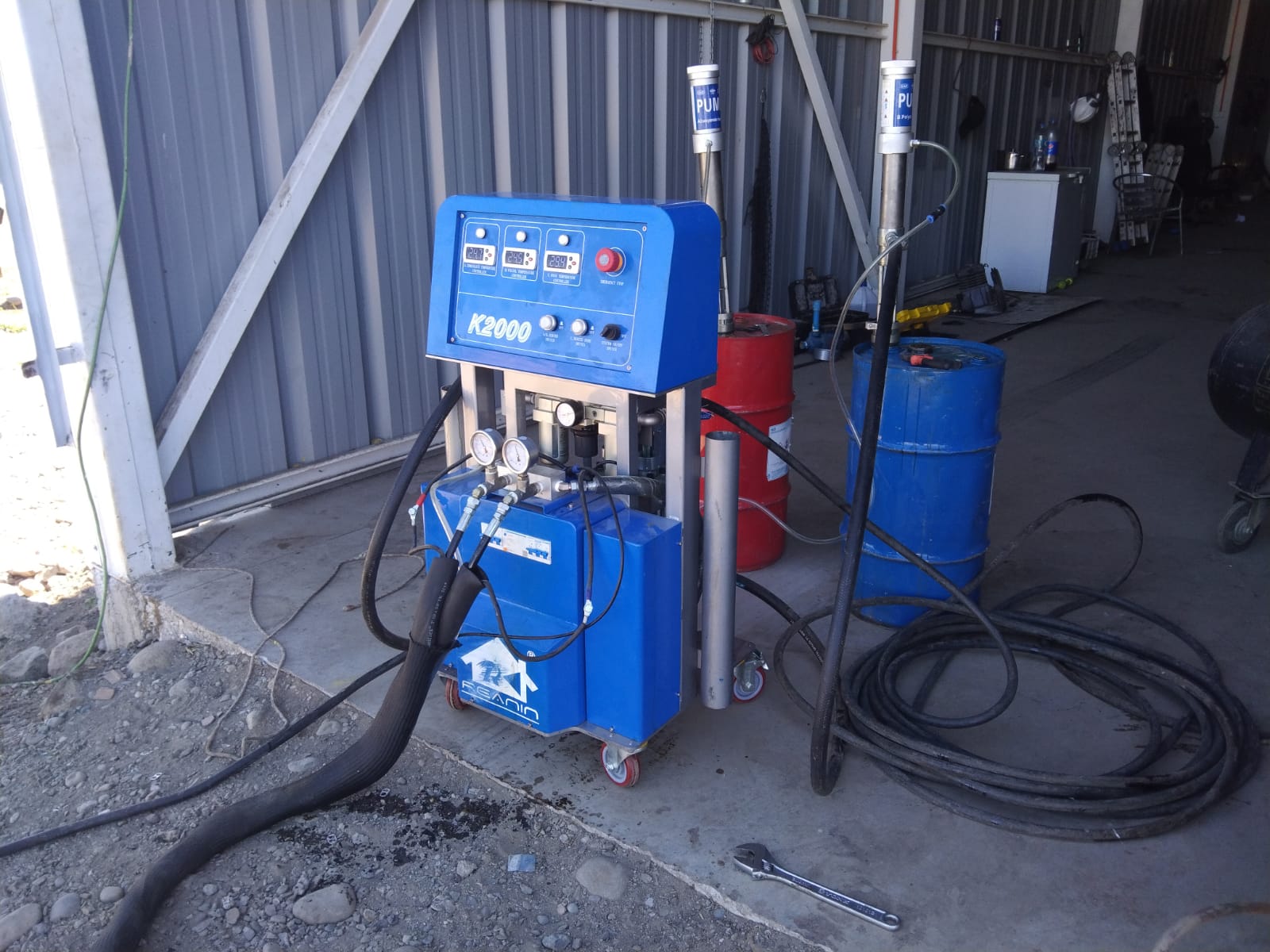

K2000 Polyurethane Spray & Injection Machine

The K2000 Polyurethane Spray & Injection Machine from Shandong Reanin Machinery Co., Ltd. is a cost-effective, portable, and high-performance two-component polyurethane spraying solution , engineered as the first choice for thermal insulation engineering and various small-area polyurethane spraying projects. As a core product of Reanin’s pneumatic spray equipment series, it combines practical design, easy operation, and reliable performance, and has been widely exported to over 30 countries and regions, serving global customers across multiple industries.

K2000 Product Feature

1. Designed for 1:1 two-component polyurethane materials (200-1000CPS viscosity at working temperature), the K2000 features a full pneumatic drive mode. It delivers a maximum working pressure of 20MPa and a 10kg/min max output, paired with independent temperature control for A/B materials and heated hoses (max 80°C fluid temperature). Adopting variable frequency temperature control and real-time temperature sensors, it ensures material temperature stability with minimal fluctuations, guaranteeing uniform and high-quality spraying for thermal insulation projects.

2. The K2000 is built for convenience and durability in every detail. It holds CE certification, with an operation tip-equipped panel for quick setup; the booster pump features a simple structure for easy disassembly and maintenance, and its stop reset function prevents ISO crystallization damage to seals and pump shafts. The integrated heated hose is covered with a wear-resistant insulating sleeve, effectively preserving material temperature and avoiding leakage or short circuits. Filtering devices are installed on transfer pumps, the mainframe, and the alloy spray gun to filter impurities and reduce gun clogging, while the spray gun itself is lightweight with few wearing parts for effortless use and upkeep. It also comes with high-precision MPa/PSI dual-unit pressure gauges and an action counter for accurate raw material calculation.

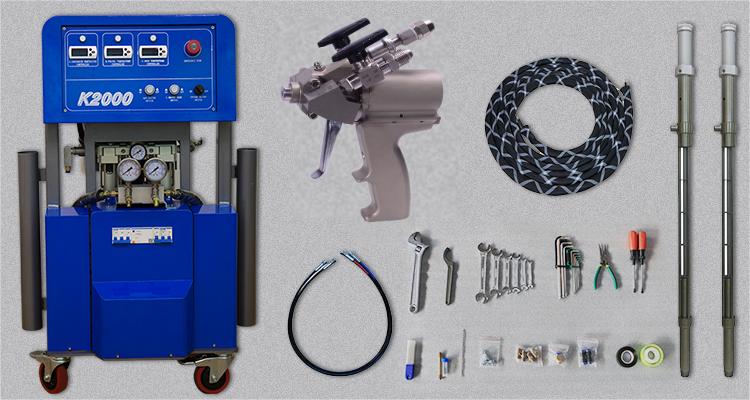

3. This compact machine (package size:90X75X143cm, net weight:210kg) is ideal for construction, automobile, road, railway, shipbuilding, mining, petroleum, and electrical industries. The standard configuration includes a full mainframe set, 2 transfer pumps, 15m heated hose, alloy spray gun, English user manual, protective gear, and spare parts, with an optional 60m max heated hose and 220V/380V voltage to meet diverse customer needs. Air self-cleaning mode simplifies post-construction maintenance, further improving construction efficiency.



K2000 Technical Parameters

• Model: K2000 Polyurethane Spray Machine

• Applicable materials: Polyurethane

• The ratio of raw material: 1:1

• Viscosity range of raw materials: 200-1000CPS (under working temperature)

• Max working pressure: 20MPa

• Max fluid temperature: 80°C

• Max output: 10kg/min

• Max heated hose length (Optional): 60m

• Heater peak power: 4500Wx2

• Heated hose max power: 3000W

• Drive mode: Full pneumatic

• Clean mode: Self-cleaning by air

• Voltage (Optional): 2 wires Single phase 220V 50Hz or 4 wires Three phase 380V 50Hz

• Whole power: 12kw

• Pneumatic source: 0.5-0.8Mpa lm3 /min.

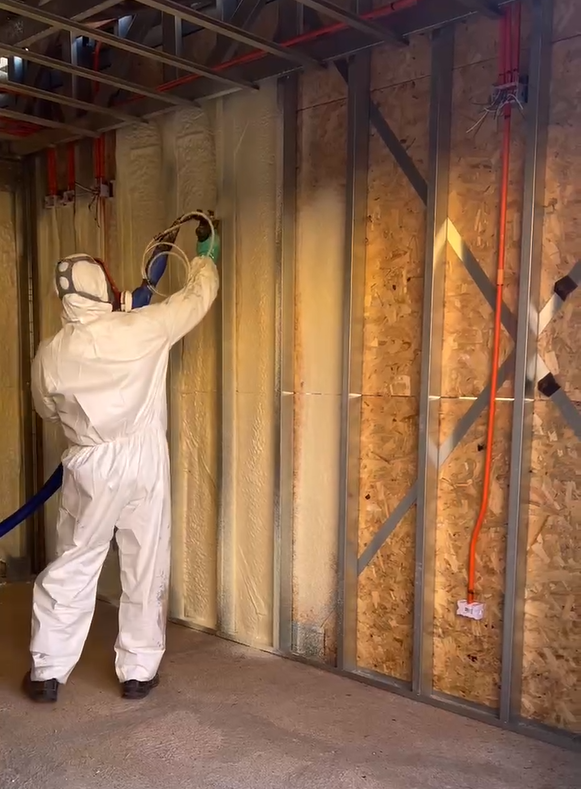

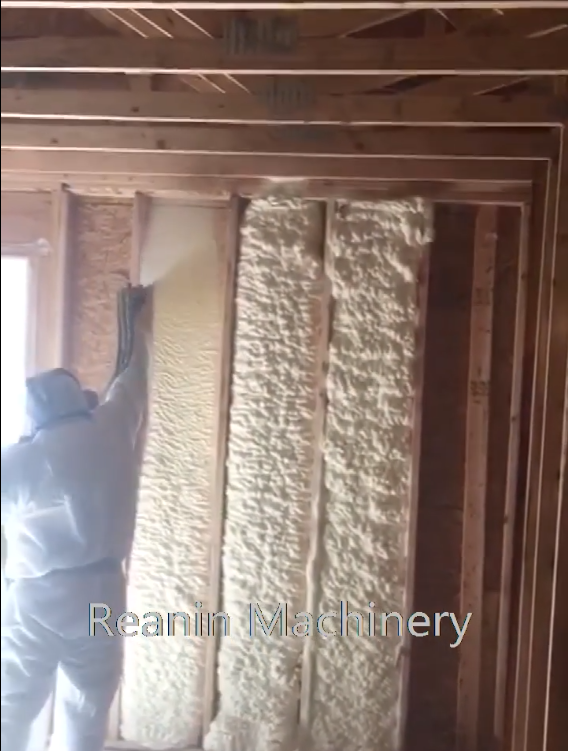

Application

About Reanin

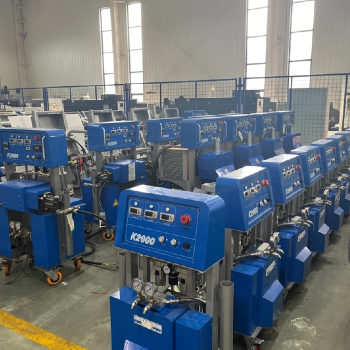

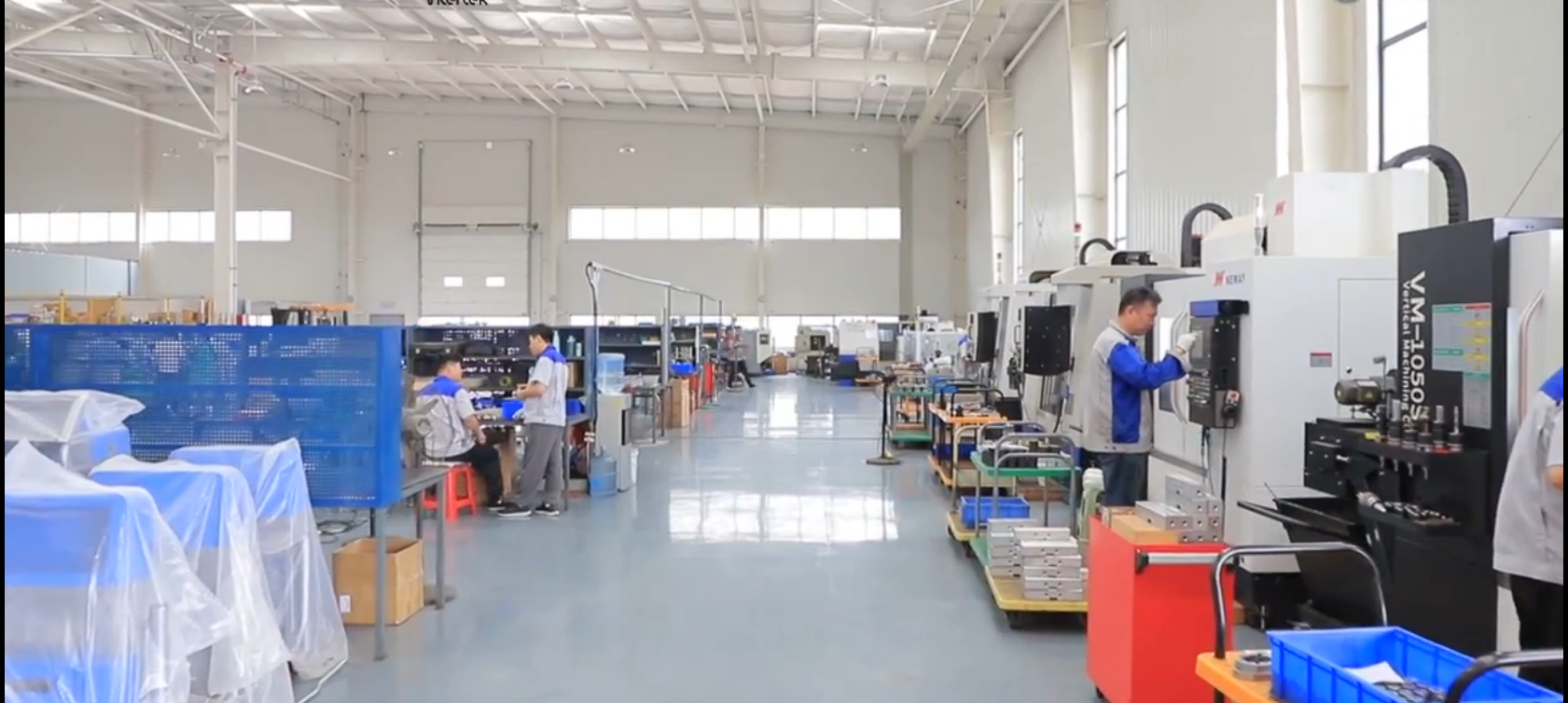

As a professional polyurethane equipment manufacturer with a 2000+ square meter modern production plant, Reanin Machinery not only provides the polyurethane polyurea spray machine but also offers one-stop industry solutions including polyurethane raw materials, generator sets, and air compressors. Backed by professional technical support and perfect after-sales service, the K2000 is your reliable and economical choice for efficient thermal insulation spraying and small-area polyurethane projects worldwide. Any requirements, please feel free to contact us.
